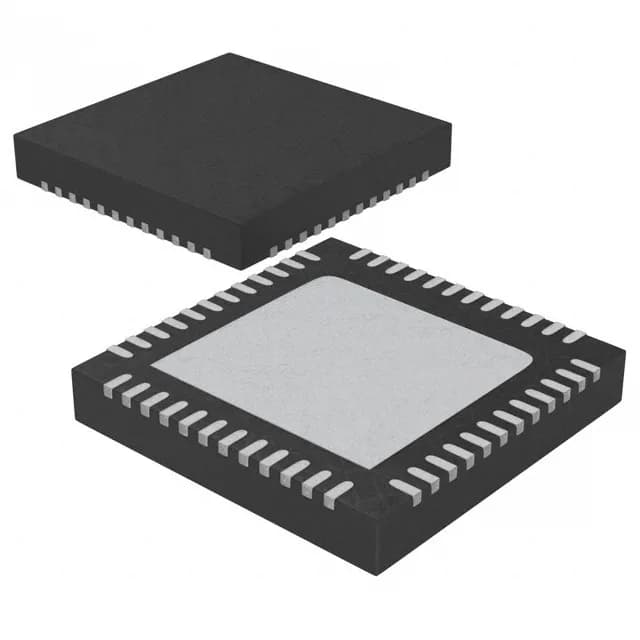

MKL25Z32VFT4
NXP USA Inc.
-40°C ~ 105°C (TA)I²C, LINbus, SPI, UART/USART, USB, USB OTGBrown-out Detect/Reset, DMA, LVD, POR, PWM, WDT
Ref. price$7.7600
Lead time on requestGet quote ›
NXP Semiconductors MKL2 Series
9 variants · NXP Semiconductors
About the NXP Semiconductors NXP Semiconductors MKL2 Series series
The NXP Semiconductors NXP Semiconductors MKL2 Series series groups 9 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common core processor of ARM® Cortex®-M0+, core size of 32-Bit Single-Core and oscillator type of Internal. Variants differ by case, connectivity and data converters, so you can match the exact case your application requires using the selection guide below. All listed NXP Semiconductors MKL2 Series part numbers are active and orderable.
Select a variant by
- Case
- 32-UFQFN Exposed Pad · 32-VFQFN Exposed Pad · 36-XFBGA · 48-UFQFN Exposed Pad · 48-VFQFN Exposed Pad · 64-LFBGA · 64-LQFP · 80-LQFP
- Connectivity
- I²C, FlexIO, SPI, UART/USART, USB · I²C, LINbus, SPI, UART/USART, USB, USB OTG · I²C, SPI, UART/USART, USB
- Data converters
- A/D - 16bit; D/A - 12bit · A/D 8x16b · A/D 13x16b; D/A 1x12b · A/D 14x16b · A/D 14x16b; D/A 1x12b · A/D 16x16b; D/A 1x12b
- Mounting type
- Surface Mount · Surface Mount, Wettable Flank
- Number of i (O)
- 23 · 24 · 30 · 36 · 50 · 66
- Operating temperature
- -40°C ~ 105°C (TA) · -40°C~105°C(TA)
- Peripherals
- Brown-out Detect/Reset, DMA, I²S, LVD, POR, PWM, WDT · Brown-out Detect/Reset, DMA, LVD, POR, PWM, WDT · DMA, I²S, LVD, POR, PWM, WDT · DMA, I²S, PWM, WDT
- Program memory size
- 32KB (32K x 8) · 64KB (64K x 8) · 128KB (128K x 8) · 256KB (256K x 8)
Variant comparison

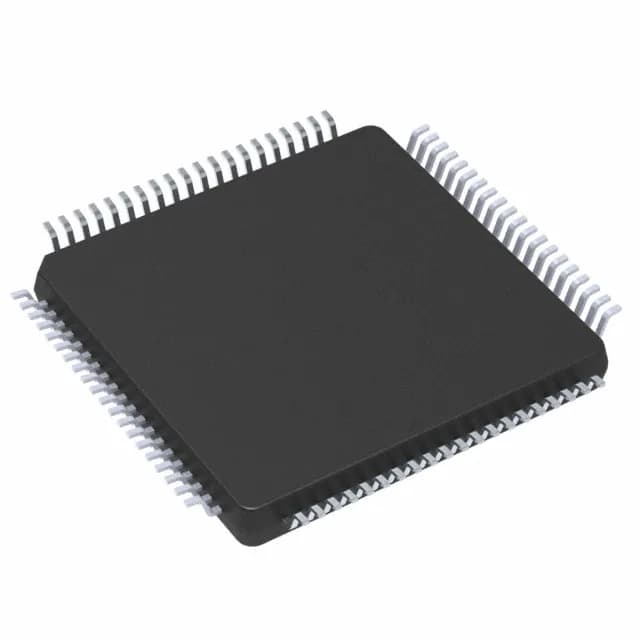

| Parameter | MKL25Z32VFT4 | MKL25Z64VLK4 | MKL26Z128VLH4 | MKL26Z256VMP4 | MKL26Z64VFM4 | MKL27Z256VFT4 |
|---|---|---|---|---|---|---|
| Case | 48-VFQFN Exposed Pad | 80-LQFP | 64-LQFP | 64-LFBGA | 32-VFQFN Exposed Pad | 48-UFQFN Exposed Pad |
| Connectivity | I²C, LINbus, SPI, UART/USART, USB, USB OTG | I²C, LINbus, SPI, UART/USART, USB, USB OTG | I²C, LINbus, SPI, UART/USART, USB, USB OTG | I²C, LINbus, SPI, UART/USART, USB, USB OTG | I²C, LINbus, SPI, UART/USART, USB, USB OTG | I²C, SPI, UART/USART, USB |
| Data converters | A/D 13x16b; D/A 1x12b | A/D 14x16b; D/A 1x12b | A/D - 16bit; D/A - 12bit | A/D - 16bit; D/A - 12bit | A/D - 16bit; D/A - 12bit | A/D 16x16b; D/A 1x12b |
| Mounting type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount, Wettable Flank | Surface Mount |
| Number of i (O) | 36 | 66 | 50 | 50 | 23 | 36 |
| Operating temperature | -40°C ~ 105°C (TA) | -40°C~105°C(TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) |
| Peripherals | Brown-out Detect/Reset, DMA, LVD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, LVD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, LVD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, LVD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, LVD, POR, PWM, WDT | DMA, I²S, LVD, POR, PWM, WDT |
| Program memory size | 32KB (32K x 8) | 64KB (64K x 8) | 128KB (128K x 8) | 256KB (256K x 8) | 64KB (64K x 8) | 256KB (256K x 8) |
Shared specifications
- Core processor
- ARM® Cortex®-M0+
- Core size
- 32-Bit Single-Core
- Oscillator type
- Internal
- Package
- Tray
- Program memory type
- FLASH
- Speed
- 48MHz
- Voltage - supply (Vcc (Vdd))
- 1.71V ~ 3.6V
Request a quote on any NXP Semiconductors MKL2 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the NXP Semiconductors NXP Semiconductors MKL2 Series variants differ?
- NXP Semiconductors MKL2 Series part numbers differ by case, connectivity, data converters and mounting type. Use the selection guide above to pick by case.
- How many NXP Semiconductors NXP Semiconductors MKL2 Series part numbers are listed?
- 9 NXP Semiconductors NXP Semiconductors MKL2 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for NXP Semiconductors NXP Semiconductors MKL2 Series?
- Request a quote (RFQ) for any NXP Semiconductors MKL2 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
