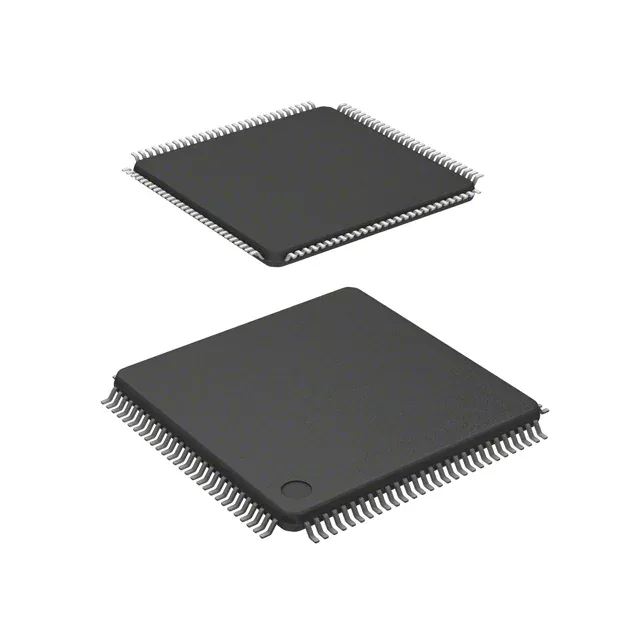

S9S12XS256J0VAL NXP 16-bit MCU, 40MHz, 256KB Flash, 112-LQFP

MPNS9S12XS256J0VAL
End of Life

NXP Semiconductors HCS12X series 16-bit MCU, S9S12XS256J0VAL, 40MHz core, 256KB Flash, 12KB RAM, 112-LQFP (20x20), -40°C to +105°C.

$12.78Ref. price · indicative, final on quote
S9S12XS256J0VAL datasheet
Packaging112-LQFP
StockIn Stock (14)
Lead time3-5 Days wk
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

S9S12XS256J0VAL Technical Specifications
ParameterValue
SeriesHCS12X
Mounting typeSurface Mount
Oscillator typeExternal
Program memory typeFLASH
Voltage - supply (Vcc (Vdd))1.72V ~ 5.5V
Operating temperature-40°C ~ 105°C (TA)
Speed40MHz
PackageTray
RAM size12K x 8
Core size16-Bit
PeripheralsLVD, POR, PWM, WDT
ConnectivityCANbus, SCI, SPI
Number of i (O)91
Core processorHCS12X
Case112-LQFP
Data convertersA/D 16x12b
Program memory size256KB (256K x 8)

Product details

On-chip peripherals — CAN, SCI, SPI, 16-channel 12-bit ADC

The S9S12XS256J0VAL: Integrated CANbus, SCI (UART), and SPI serial interfaces cover the common fieldbus and sensor links in automotive and industrial control nodes. The 16-channel 12-bit A/D converter samples analog inputs without an external ADC — the 12-bit resolution is adequate for throttle-position or pressure-sensor readback at the update rates this class of control loop demands. On-chip LVD, POR, PWM, and WDT reduce external supervisory IC count.
