56-HVQFN footprint and board integration

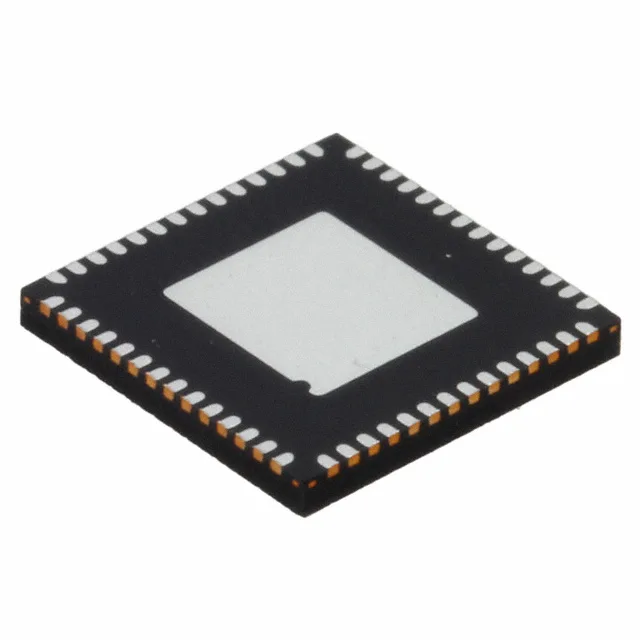

The MMPF0100F0AEP is a 12-output power management IC (PMIC) in a 56-HVQFN (8x8 mm) package with an exposed pad. The 0.5 mm pitch around the perimeter requires a 4-layer board for clean fan-out of the 56 pins.
Output count and supply rails for i.MX6
The PMIC provides 12 independent output rails from a single input voltage of 2.8V to 4.5V. This covers the core, I/O, memory, and analog supply needs of an i.MX6 processor — the 12 outputs map directly to the i.MX6 power sequencing requirements, eliminating the need for multiple discrete regulators.
