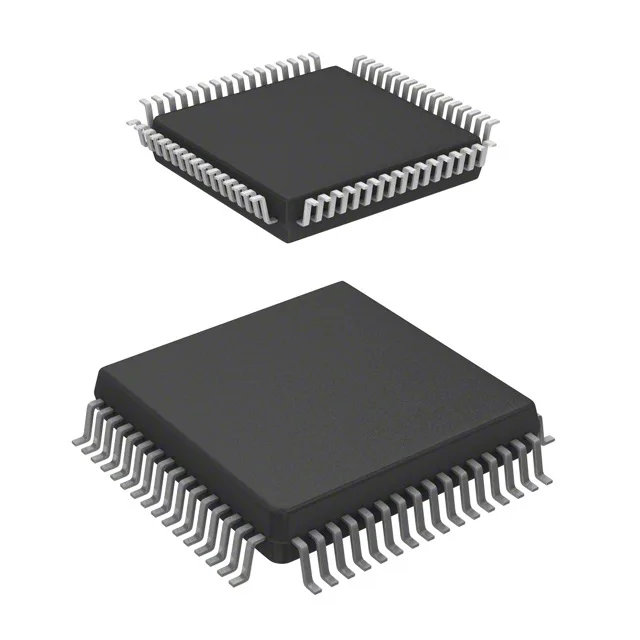

NXP Semiconductors S08 series 8-bit microcontroller, MC9S08AW60MFUE, 60KB Flash, 2K x 8 RAM, 40MHz, 54 I/O, 64-QFP package, tray.
MOQ 1 · Tray · RoHS · EIA-481 · DAP/DDP · T/T
| Parameter / Attribute | Specification / Value |
|---|---|
| Series | S08 |
| Mounting | Surface Mount |
| Oscillator type | Internal |
| Program memory type | FLASH |
| Voltage - supply (Vcc (Vdd)) | 2.7V ~ 5.5V |
| Operating temperature | -40°C ~ 125°C (TA) |
| Speed | 40MHz |
| Package | Tray |
| RAM size | 2K x 8 |
| Core size | 8-Bit |
| Peripherals | LVD, POR, PWM, WDT |
| Connectivity | I2C, SCI, SPI |
| Number of i (O) | 54 |
| Core processor | S08 |
| Case | 64-QFP |
| Data converters | A/D 16x10b |
| Program memory size | 60KB (60K x 8) |
The MC9S08AW60MFUE: It packs 60 KB of on-chip Flash and 2 KB of RAM — enough for a moderate control loop, sensor fusion, or HMI front-end without external memory.
On-chip peripherals include LVD (low-voltage detect), POR (power-on reset), PWM, and a watchdog timer — these handle brown-out recovery and safe startup without external supervisor ICs.
