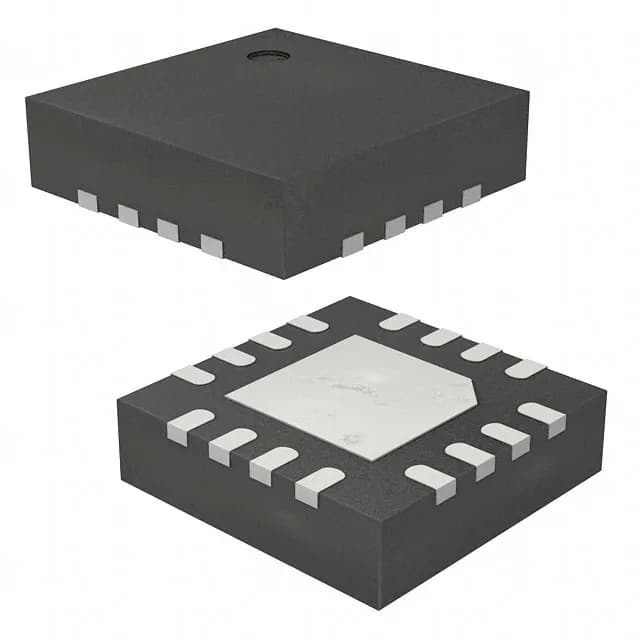

NXP USA Inc. MKL03Z16VFG4 — Microcontrollers & Processors (MCU / MPU / DSP)
NXP USA Inc.

NXP MKL03Z16VFG4 Kinetis KL03 ARM Cortex-M0+ MCU, 48 MHz

MPNMKL03Z16VFG4
Active

NXP Kinetis KL03 series, MKL03Z16VFG4, ARM Cortex-M0+ 48 MHz, 16 KB Flash, 2 KB RAM, 7x12b ADC, 14 I/O, I²C/SPI/UART, internal oscillator, 1.71 V–3.6 V, -40°C–105°C, 16-QFN (3x3) exposed pad, tray.

$2.6300Ref. price · indicative, final on quote
MKL03Z16VFG4 datasheet
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

MKL03Z16VFG4 Technical Specifications
ParameterValue
SeriesKinetis KL03
Mounting typeSurface Mount
Oscillator typeInternal
Program memory typeFLASH
Voltage - supply (Vcc (Vdd))1.71V ~ 3.6V
Operating temperature-40°C ~ 105°C (TA)
Speed48MHz
PackageTray
RAM size2K x 8
Core size32-Bit Single-Core
PeripheralsBrown-out Detect/Reset, LVD, POR, PWM, WDT
ConnectivityI²C, SPI, UART/USART
Number of i (O)14
Core processorARM® Cortex®-M0+
Case16-UFQFN Exposed Pad
Data convertersA/D 7x12b
Program memory size16KB (16K x 8)

Product details

48 MHz Cortex-M0+ in a 3x3 mm QFN

The NXP MKL03Z16VFG4 is a 32-bit ARM Cortex-M0+ MCU from the Kinetis KL03 series, clocked at 48 MHz. It packs 16 KB Flash and 2 KB RAM in a 16-QFN (3x3 mm) exposed-pad package — sized for space-constrained sensor nodes or simple control modules. Fourteen I/O lines bring out I²C, SPI, and UART connectivity; an internal oscillator eliminates the external crystal on low-tolerance links. The 7-channel 12-bit ADC handles analog inputs directly, keeping the BOM count low.

16 KB Flash — firmware budget is tight

16 KB Flash is the hard limit for compiled code. That fits a bootloader, a Modbus RTU slave stack, or a sensor-fusion algorithm.

Frequently asked questions

What is MKL03Z16VFG4's listed speed?

The core processor runs at 48 MHz maximum. That is the ARM Cortex-M0+ clock rate, suitable for sensor polling, UART communication, and simple control loops.
