NXP RT-600 series dual ARM Cortex-M33 @300MHz, 4.5M x 8 RAM, 176-VFBGA (9x9mm) Tray, USB2.0 OTG / UART / SPI / I²C / MMC/SD, 96 I/O, 12x12b ADC, -20°C to 70°C, 1.71–3.6V supply.
| Parameter | Value |
|---|---|
| Series | RT-600 |
| Mounting | Surface Mount |
| Oscillator type | Internal |
| Program memory type | External Program Memory |
| Voltage - supply (Vcc (Vdd)) | 1.71V ~ 3.6V |
| Operating temperature | -20°C~70°C(TA) |
| Speed | 300MHz |
| Package | Tray |
| RAM size | 4.5M x 8 |
| Core size | 32-Bit Dual-Core |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Connectivity | EBI/EMI, I²C, MMC/SD/SDIO, SPDIF, SPI, UART/USART, USB2.0 OTG |
| Number of i (O) | 96 |
| Core processor | ARM® Cortex®-M33 |

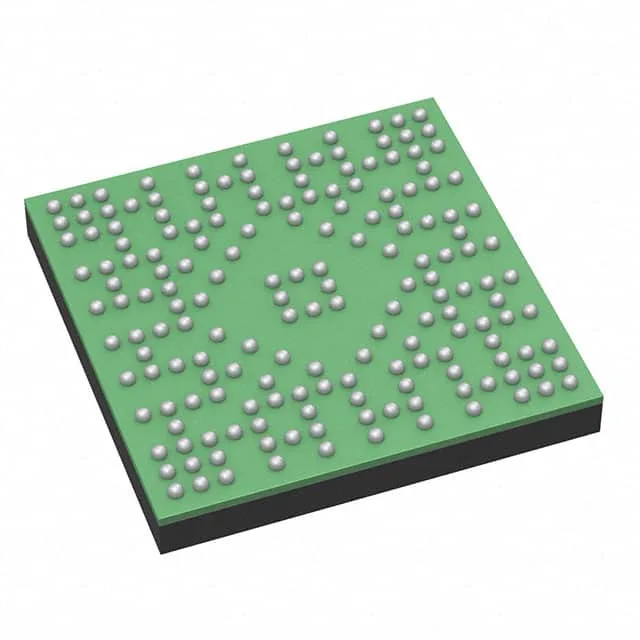

| Case | 176-VFBGA |
| Data converters | A/D 12x12b |
The MIMXRT685SFVKB: The 176-VFBGA (9x9 mm) packs 96 general-purpose I/O plus USB 2.0 OTG, two I²C, three SPI, eight UART, MMC/SD/SDIO, and SPDIF. The 12-bit ADC has 12 channels.
It belongs in consumer audio gear, office equipment, or indoor IoT gateways.
The listed core speed is 300 MHz on both ARM Cortex-M33 cores.
The MIMXRT685SFVKB is ROHS3 compliant. REACH and other compliance documents are typically available from NXP upon request.
