NXP USA Inc. · RT-600 Series

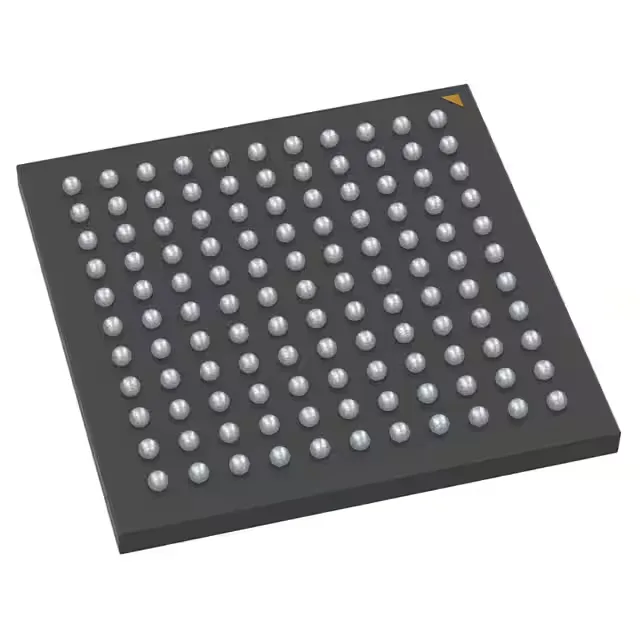

NXP RT-600 series 32-bit dual-core ARM Cortex-M33 crossover MCU, MIMXRT685SFFOB, 300 MHz, 4.5M x 8 RAM, external program memory, 147 I/O, USB 2.0 OTG, 1.71 V to 3.6 V supply, -20°C to 85°C, 249-FOWLP (7x7 mm) tray.
MOQ 1 · Tray · RoHS · EIA-481 · DAP/DDP · T/T
| Parameter / Attribute | Specification / Value |
|---|---|
| Series | RT-600 |
| Mounting | Surface Mount |
| Oscillator type | Internal |
| Program memory type | External Program Memory |
| Voltage - supply (Vcc (Vdd)) | 1.71V ~ 3.6V |
| Operating temperature | -20°C~85°C(TA) |
| Speed | 300MHz |
| Package | Tray |
| RAM size | 4.5M x 8 |
| Core size | 32-Bit Dual-Core |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Connectivity | EBI/EMI, I²C, MMC/SD/SDIO, SPDIF, SPI, UART/USART, USB2.0 OTG |
| Number of i (O) | 147 |
| Core processor | ARM® Cortex®-M33 |
| Case | 249-WFBGA |
| Data converters | A/D 12x12b |
The USB OTG support means it can act as either host or device without an external PHY — useful for field updates or direct connection to a sensor hub. The EBI/EMI interface can gluelessly attach parallel NOR Flash, SRAM, or a display controller, which is the typical path for expanding program or frame-buffer memory beyond the internal RAM.
Operating temperature is -20°C to 85°C.
