I/O and memory interface
Security and co-processor
On-die ARM TrustZone, HAB, CAAM, and secure JTAG. Cortex-M4 co-processor handles real-time tasks.

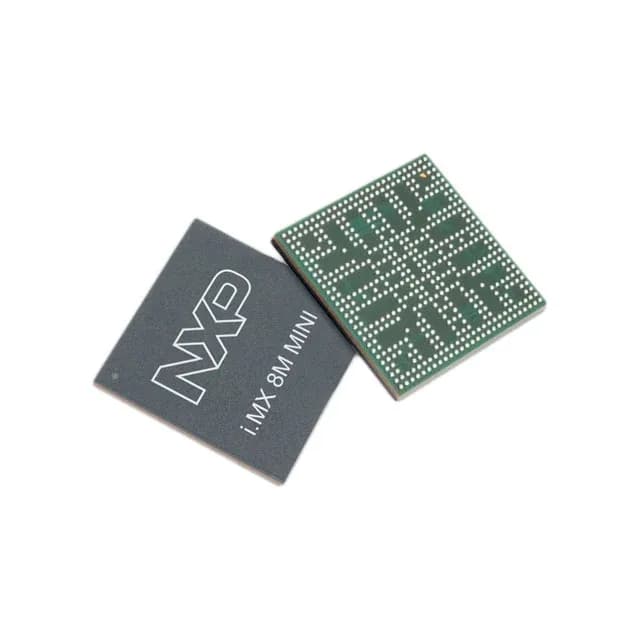

NXP i.MX8M Mini series, MIMX8MM4CVTKZAA, dual ARM Cortex-A53 64-bit at 1.6 GHz, 486-LFBGA 14×14 mm, industrial -40°C to 105°C Tj, DDR3L/DDR4/LPDDR4, GbE, dual USB 2.0+PHY.
$48.3300Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
- Date & lot codes on quoteStated per line before you commit; label photos on request.
- MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | i.MX8MM |
| Mounting type | Surface Mount |
| Additional interfaces | I²C, PCIe, SDHC, SPI, UART |
| Display & interface controllers | MIPI-DSI |
| Operating temperature | -40°C~105°C(TJ) |
| Number of cores (Bus width) | 2 Core, 64-Bit |
| USB | USB 2.0 + PHY (2) |
| Speed | 1.6GHz |
| Package | Tray |
| Ethernet | GbE |
| Core processor | ARM® Cortex®-A53 |
| Case | 486-LFBGA, FCBGA |
| RAM controllers | DDR3L, DDR4, LPDDR4 |
| Co-Processors (DSP) | ARM® Cortex®-M4 |
| Security features | ARM TZ, CAAM, HAB, OCRAM, RDC, SJC, SNVS |
| Graphics acceleration | Yes |
Product details
Frequently asked questions
What is the closest pin-compatible alternative to the MIMX8MM4CVTKZAA?
Within the i.MX8M Mini family, the MIMX8MM4CVTKZAA is a dual-core variant. Pin-compatible options with different core counts or speed grades exist (e.g., quad-core MIMX8MM6CVTKZAA), but the exact pinout and power delivery should be verified against the NXP reference manual for the target speed grade.
What USB interfaces does the MIMX8MM4CVTKZAA have?
The MIMX8MM4CVTKZAA includes two USB 2.0 interfaces with integrated PHY, supporting host and OTG modes without external transceivers.
What is the core speed of the MIMX8MM4CVTKZAA?
The dual ARM Cortex-A53 cores run at 1.6 GHz, providing a solid compute foundation for Linux-based embedded applications.
