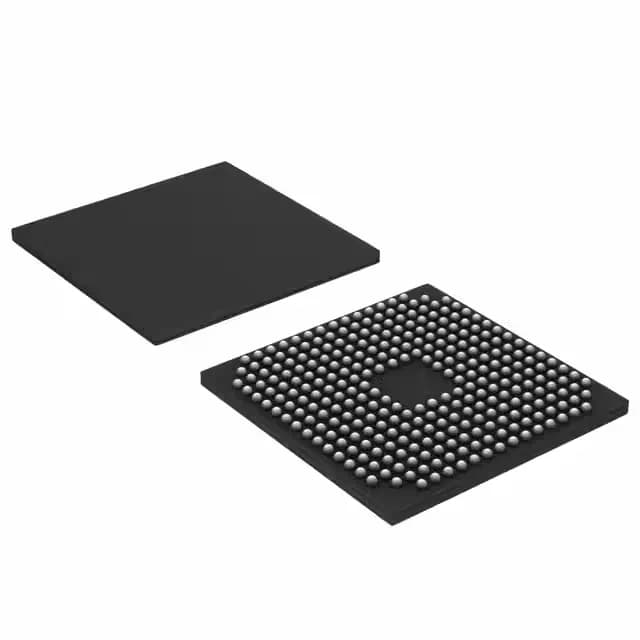

NXP LPC3250FET296/01K ARM9 MCU, 266 MHz, 296-TFBGA

MPNLPC3250FET296/01K
Active

NXP LPC3200 series ARM926EJ-S microcontroller, ROMless, 266 MHz, 0.9–3.6 V supply, 51 GPIO, 296-TFBGA (15×15 mm tray), -40°C to 85°C.

$23.6600Ref. price · indicative, final on quote
LPC3250FET296/01K datasheet
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

LPC3250FET296/01K Technical Specifications
ParameterValue
SeriesLPC3200
Mounting typeSurface Mount
Oscillator typeInternal
Program memory typeROMless
Voltage - supply (Vcc (Vdd))0.9V ~ 3.6V
Operating temperature-40°C~85°C(TA)
Speed266MHz
PackageTray
RAM size256K x 8
Core size16/32-Bit
PeripheralsDMA, I²S, LCD, Motor Control PWM, PWM, WDT
ConnectivityEBI/EMI, Ethernet, I²C, IrDA, Microwire, SPI, SSI, SSP, UART/USART, USB OTG
Number of i (O)51
Core processorARM9®
Case296-TFBGA
Data convertersA/D 3x10b SAR

Product details

ARM926EJ-S at 266 MHz — what the core rating buys you

The NXP LPC3250FET296/01K is a ROMless ARM926EJ-S microcontroller running at 266 MHz, part of the LPC3200 series.

Peripheral set for industrial HMI and control

Connectivity includes EBI/EMI, Ethernet, USB OTG, I²C, SPI, SSI, SSP, UART/USART, IrDA, and Microwire.

ROMless design — external Flash required

Program memory type is ROMless — no internal Flash or OTP. Boot code must reside in external Flash.

Temperature grade and environment

Rated for -40°C to 85°C ambient. The 296-TFBGA package requires careful PCB layout.

Frequently asked questions

What is the closest pin-compatible alternative to LPC3250FET296/01K?

Within the LPC3200 series, pin-compatible density and feature variants exist — the exact alternative depends on required RAM, peripheral set, and temperature grade. The base product number LPC3250 covers the ROMless ARM9 family; verify pin compatibility against the specific variant datasheet.

What is LPC3250FET296/01K's listed speed?

The core is rated at 266 MHz, which is the maximum clock frequency for the ARM926EJ-S processor on this device.

What compliance documentation does NXP provide for LPC3250FET296/01K?

NXP provides RoHS and REACH compliance documentation for the LPC3250FET296/01K. The part is supplied in RoHS-compliant TFBGA packaging.
