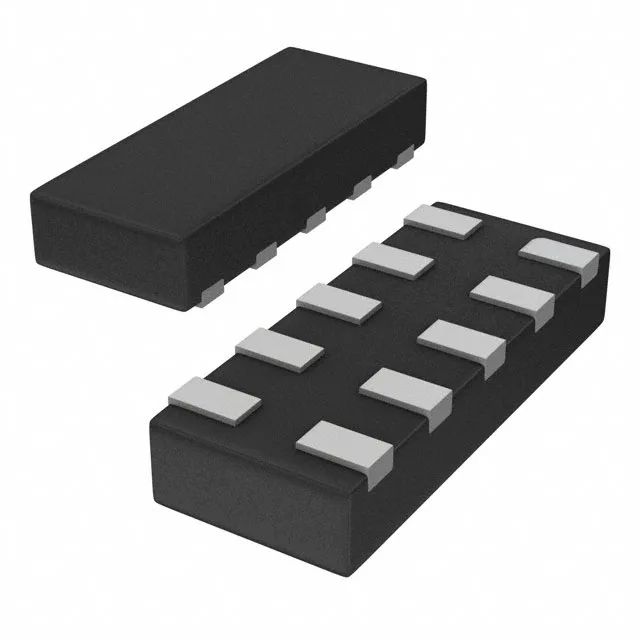

PESD4USB3BTBR-QX
Nexperia USA Inc.
[IN STOCK] In Stock: 74 pcs
MOQ 1 · Tape & Reel (TR) · RoHS · EIA-481 · DAP/DDP · T/T
Technical specifications
| Parameter / Attribute | Specification / Value |
|---|---|
| Type | Zener |
| Series | Automotive, AEC-Q101 |
| Mounting | Surface Mount |
| Voltage - breakdown | 6V |
| Voltage - clamping (Max) @ ipp | 5.5V (Typ) |
| Voltage - reverse standoff | 3.3V (Max) |
| Current - peak pulse (10/1000μs) | 7A (8/20µs) |
| Power line protection | No |
| Capacitance @ frequency | 0.22pF @ 1MHz |
| Operating temperature | -55°C~150°C(TA) |
| Package | Tape & Reel (TR) |
| Applications | Automotive, HDMI, USB |
| Case | 10-XFDFN |
| Unidirectional channels | 4 |
PESD4USB3BTBR-QX
[ALLOC] verified
