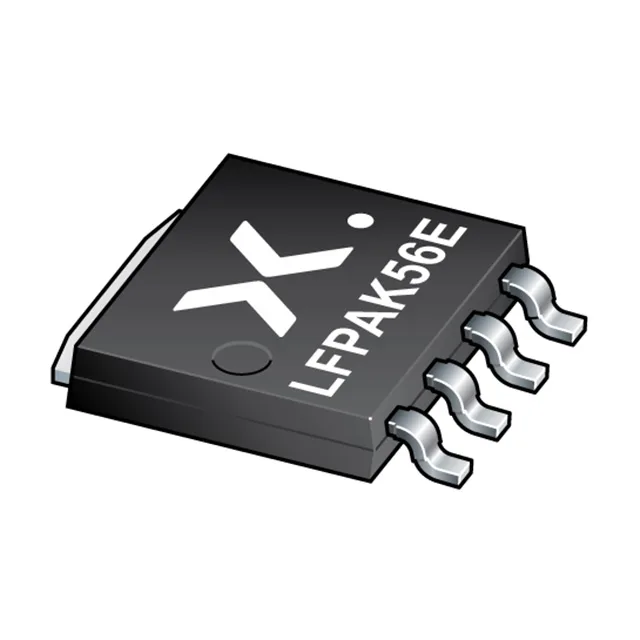

BUK7J1R4-40HX
Nexperia USA Inc.
MOSFET N-CH 40V 190A LFPAK56
[IN STOCK] In Stock: 592 pcs
MOQ 1 · Tape & Reel (TR); Cut Tape (CT) · RoHS · EIA-481 · DAP/DDP · T/T
Technical specifications
| Parameter / Attribute | Specification / Value |
|---|---|
| FET type | N-Channel |
| Mounting | Surface Mount |
| Drain to source voltage | 40 V |
| Drive voltage (Max rds on, min rds on) | 10V |
| Current - continuous drain (Id) @ 25°C | 120A (Ta) |
| Power dissipation | 395W (Ta) |
| Operating temperature | -55°C ~ 175°C (TJ) |
| Grade | Automotive |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Vgs | +20V, -10V |
| Technology | MOSFET (Metal Oxide) |
| Qualification | AEC-Q101 |
| Case | SOT-1023, 4-LFPAK |
| Vgs(th) (Max) @ id | 3.6V @ 1mA |
| Rds on (Max) @ id, vgs | 1.4mOhm @ 25A, 10V |
| Gate charge (Qg) (Max) @ vgs | 126 nC @ 10 V |
| Input capacitance (Ciss) (Max) @ vds | 8155 pF @ 25 V |
