Nexperia USA Inc. BC817-40QBZ
MPNBC817-40QBZ
Active

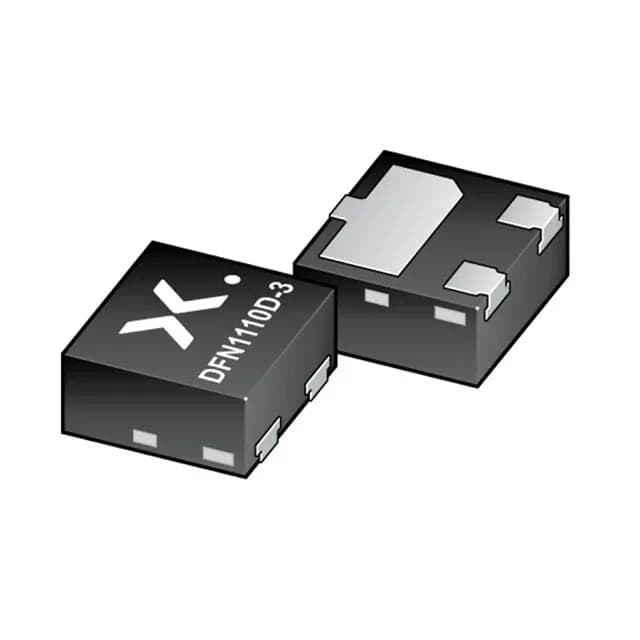

TRANS NPN 45V 0.5A DFN1110D-3
$0.1500Ref. price · indicative, final on quote
Packaging3-XDFN Exposed Pad
RoHSROHS3 Compliant
SeriesBC817QB
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BC817QB |
| Mounting | Surface Mount, Wettable Flank |
| FET type | NPN |
| Voltage - collector emitter breakdown | 45 V |
| Current - collector (Ic) | 500 mA |
| Current - collector cutoff | 100nA (ICBO) |
| DC current gain (hFE) (Min) @ ic, vce | 250 @ 100mA, 1V |
| Power - max | 350 mW |
| Frequency - transition | 100MHz |
| Operating temperature | 150°C (TJ) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Case | 3-XDFN Exposed Pad |
| Vce saturation (Max) @ ib, ic | 700mV @ 50mA, 500mA |
