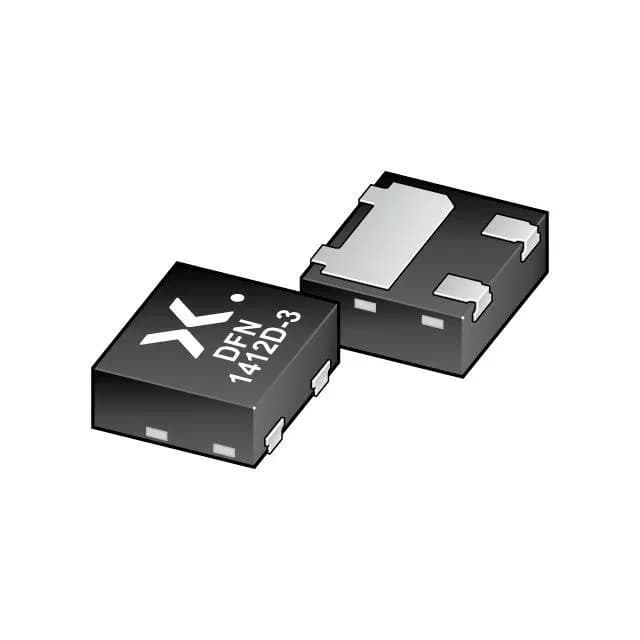

Nexperia USA Inc. BC817-25QCH-QZ
MPNBC817-25QCH-QZ
Active
TRANS NPN 45V 0.5A DFN1412D-3
$0.3300Ref. price · indicative, final on quote
Packaging3-XDFN Exposed Pad
RoHSROHS3 Compliant
SeriesAutomotive, AEC-Q101, BC817QCH-Q
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BC817QCH-Q |
| Mounting | Surface Mount, Wettable Flank |
| FET type | NPN |
| Voltage - collector emitter breakdown | 45 V |
| Current - collector (Ic) | 500 mA |
| Current - collector cutoff | 100nA (ICBO) |
| DC current gain (hFE) (Min) @ ic, vce | 160 @ 100mA, 1V |
| Power - max | 455 mW |
| Frequency - transition | 100MHz |
| Operating temperature | 175°C (TJ) |
| Grade | Automotive |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Qualification | AEC-Q101 |
| Case | 3-XDFN Exposed Pad |
| Vce saturation (Max) @ ib, ic | 700mV @ 50mA, 500mA |
