74LVC14ABZZ
Nexperia USA Inc. · 74LVC Series

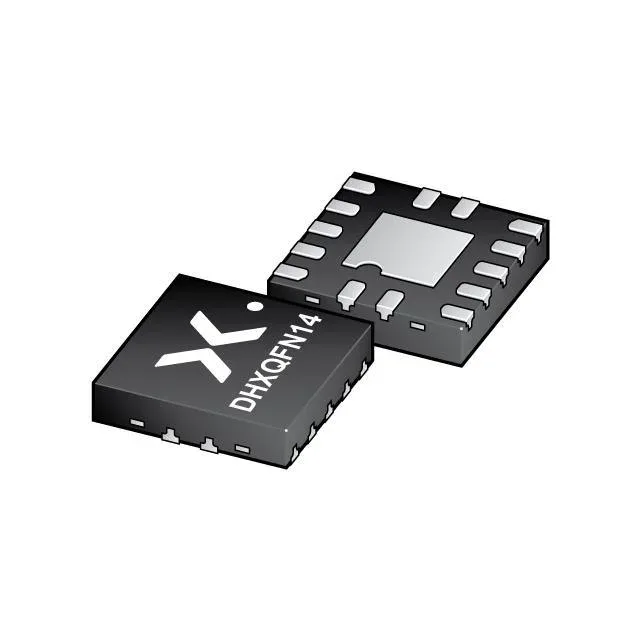

74LVC14ABZ/SOT8014/DHXQFN14
[IN STOCK] In Stock: 1,492 pcs
MOQ 5 · Tape & Reel (TR); Cut Tape (CT) · RoHS · EIA-481 · DAP/DDP · T/T
Technical specifications
| Parameter / Attribute | Specification / Value |
|---|---|
| Series | 74LVC |
| Logic type | Inverter |
| Mounting | Surface Mount |
| Supply voltage | 1.65V ~ 3.6V |
| Current - quiescent | 40 µA |
| Current - output high, low | 24mA, 24mA |
| I/O channels | 1 |
| Operating temperature | -40°C ~ 125°C |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Schmitt Trigger |
| Case | 14-XFQFN Exposed Pad |
| Number of circuits | 6 |
| Input logic level - low | 0.75V ~ 1.5V |
| Input logic level - high | 1V ~ 2V |
| Max propagation delay @ v, max CL | 8ns @ 3.3V, 50pF |
