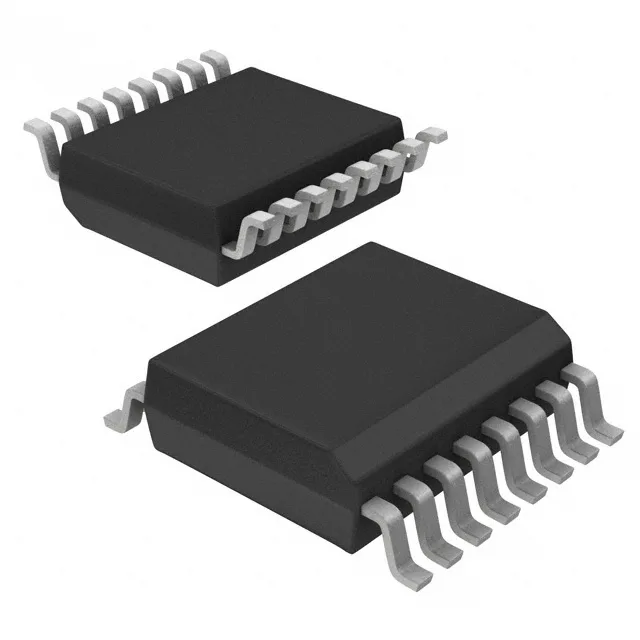

74CBTLV3257DS,118 - Nexperia USA Inc.
MPN 74CBTLV3257DS,118
Active
Spot Stock · 24-48h Dispatch
100% Original Sealed
IC MUX/DEMUX 4 X 1:2 16SSOP
In Stock: 100 pcs
MOQ: 1 pcs
Logistics: DHL / FedEx DAP (Global Express · 3-7d)
Russia & CIS DDP (Door-to-Door Cleared)
Dispatch: Shenzhen / HK
Unit Price (USD)
$1.31 / pc
Direct Purchase Ready
Volume Pricing Breaks Confirmed upon quotation
1+ pcs
$1.31
10+ pcs
$1.06
30+ pcs
$0.93
100+ pcs
$0.81
Working on a production BOM or have a target unit price? Submit Target Price
[SPEC] Essential Parameters Snapshot Full Specifications (10)
Package / Case 16-SSOP (0.154", 3.90mm Width)
Supply Voltage 2.3V ~ 3.6V
Full Technical Specifications
10 Parameters| Parameter / Attribute | Specification / Value |
|---|---|
| Type | Multiplexer/Demultiplexer |
| Series | 74CBTLV |
| Mounting | Surface Mount |
| Supply voltage | 2.3V ~ 3.6V |
| Voltage supply source | Single Supply |
| Operating temperature | -40°C ~ 125°C (TA) |
| Circuit | 4 x 1:2 |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Case | 16-SSOP (0.154\", 3.90mm Width) |
| Independent circuits | 4 |
