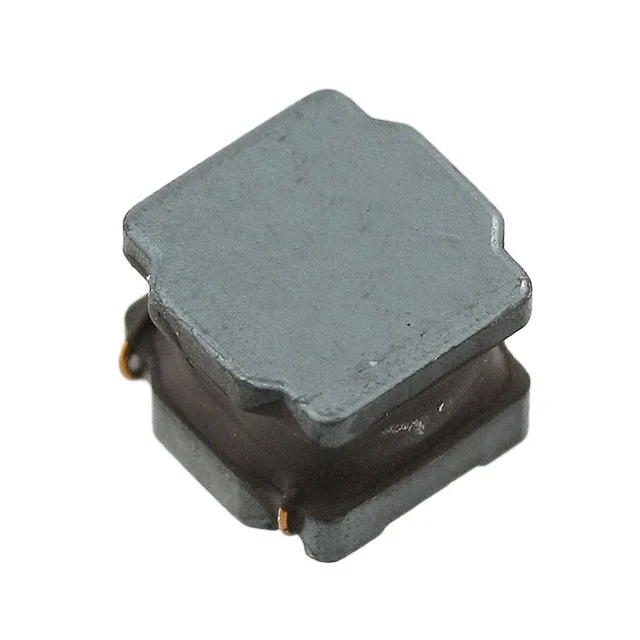

Murata Electronics LQH6PPN101M43L
MPNLQH6PPN101M43L
Obsolete
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Wirewound |
| Series | LQH6 |
| Mounting | Surface Mount |
| Current rating | 800 mA |
| Current - saturation | 920mA |
| Frequency - self resonant | 3MHz |
| Inductance frequency - test | 100 kHz |
| Operating temperature | -40°C~85°C |
| Size (Dimension) | 0.236\" L x 0.236\" W (6.00mm x 6.00mm) |
| Height - seated | 0.177\" (4.50mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Shielding | Shielded |
| Tolerance | ±20% |
| Inductance | 100 µH |
| Case | 2424 (6060 Metric) |
| DC resistance | 436mOhm |
