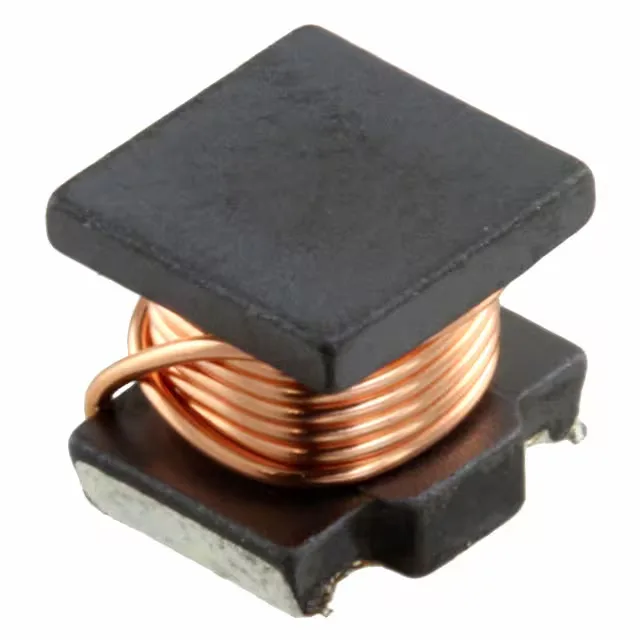

LQH55DN102M03L - Murata Electronics
MPNLQH55DN102M03L
Active
$1.48368Price · pay online now
$1.48 / ea
3 in stock — maximum per order · 3–4 days lead time
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Drum Core, Wirewound |
| Series | LQH55 |
| Mounting | Surface Mount |
| Current rating | 150 mA |
| Frequency - self resonant | 1.7MHz |
| Inductance frequency - test | 10 kHz |
| Operating temperature | -40°C~85°C |
| Material - core | Ferrite |
| Size (Dimension) | 0.224\" L x 0.197\" W (5.70mm x 5.00mm) |
| Height - seated | 0.197\" (5.00mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Shielding | Unshielded |
| Tolerance | ±20% |
| Inductance | 1 mH |
| Case | 2220 (5750 Metric) |
| DC resistance | 14.42Ohm Max |
