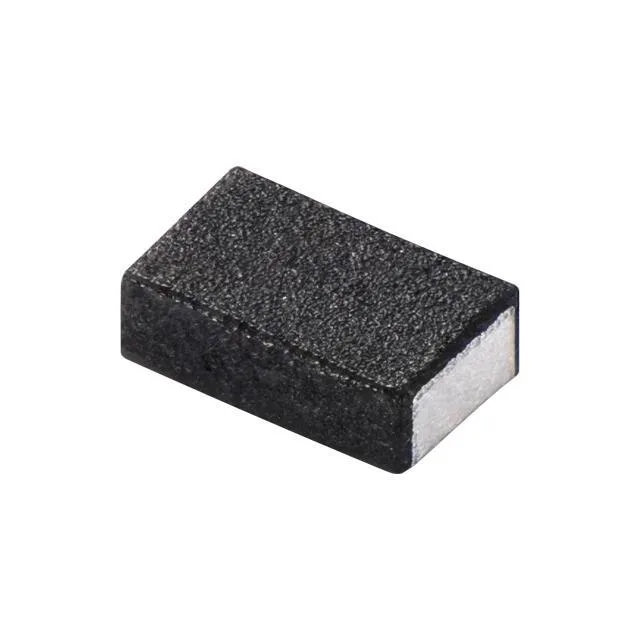

Murata Electronics DFE21CCN_EL series wirewound power inductor, DFE21CCNR33MELL, 330 nH ±20%, shielded metal core, 4.6 A, 23 mOhm DCR, 0805 (2012 Metric) surface mount.
| Parameter | Value |
|---|---|
| Type | Wirewound |
| Series | DFE21CCN_EL |
| Mounting | Surface Mount |
| Current rating | 4.6 A |
| Current - saturation | 5.4A |
| Inductance frequency - test | 1 MHz |
| Operating temperature | -40°C ~ 125°C |
| Material - core | Metal |
| Size (Dimension) | 0.079\" L x 0.047\" W (2.00mm x 1.20mm) |
| Height - seated | 0.031\" (0.80mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Shielding | Shielded |
| Tolerance | ±20% |
| Inductance | 330 nH |
| Case | 0805 (2012 Metric) |
| DC resistance | 23mOhm Max |
The DFE21CCNR33MELL: The metal composite core (Material - Core: Metal) and full shield mean the flux stays contained — adjacent power-stage passives or a nearby RF front-end won't see coupled noise from the inductor's fringing field, which matters when the inductor sits within 2–3 mm of a sensitive analog rail.
The continuous current rating is 4.6 A, and the saturation current (Isat) is 5.4 A — the 0.8 A headroom means the inductance holds within tolerance under peak load transients typical of a 3 A buck converter output stage.
Murata provides RoHS and REACH compliance declarations for the DFE21CCN_EL series. The part is halogen-free and meets the EU directive requirements for lead-free soldering processes.
