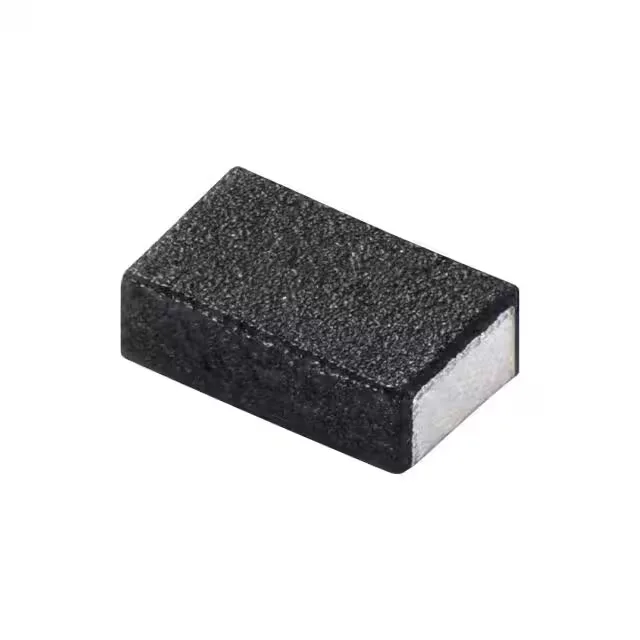

Murata Electronics DFE21CCNR24MELL — Inductors & Chokes

Murata DFE21CCNR24MELL 240 nH Shielded Power Inductor, 5.2 A

MPNDFE21CCNR24MELL
Active

Murata Electronics DFE21CCN_EL series, Drum Core Wirewound Inductor, Shielded, 240 nH, ±20%, 5.2 A, 20mOhm DCR, 0805 (2012 Metric), Surface Mount.

$0.4100Ref. price · indicative, final on quote
Murata Electronics DFE21CCNR24MELL datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

DFE21CCNR24MELL specifications
ParameterValue
TypeDrum Core, Wirewound
SeriesDFE21CCN_EL
MountingSurface Mount
Current rating5.2 A
Current - saturation6.5A
Inductance frequency - test1 MHz
Operating temperature-40°C~125°C
Material - coreMetal
Size (Dimension)0.079\" L x 0.047\" W (2.00mm x 1.20mm)
Height - seated0.031\" (0.80mm)
PackageTape & Reel (TR); Cut Tape (CT)
ShieldingShielded
Tolerance±20%
Inductance240 nH
Case0805 (2012 Metric)
DC resistance20mOhm Max

Product details

240 nH, 5.2 A — power rail fit

The DFE21CCNR24MELL is a shielded drum-core wirewound inductor from Murata's DFE21CCN_EL series, rated 240 nH with a ±20% tolerance. The 20 mOhm max DCR keeps I²R losses under 0.55 W at full rated current — a key figure for thermal budget in a compact 0805 footprint where board copper area is limited.

Shielded metal core, 0805 package

The metal composite core (Material - Core: Metal) and full magnetic shielding (Shielding: Shielded) contain the flux within the package, so this inductor can be placed near sensitive analog traces or RF sections without coupling noise into adjacent circuits.

Frequently asked questions

What is the inductance and current rating of DFE21CCNR24MELL?

The DFE21CCNR24MELL is a 240 nH shielded wirewound inductor rated for 5.2 A continuous with a saturation current of 6.5 A.
