600 Ohms at 100 MHz — the suppression band for conducted EMI

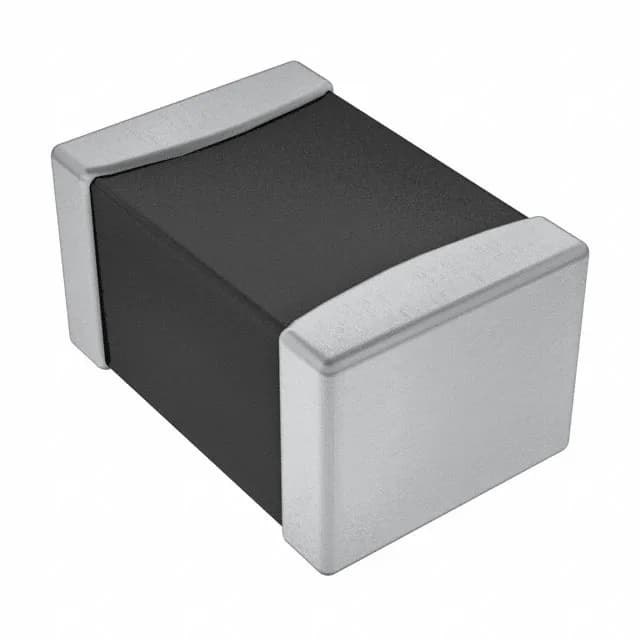

The BLM15AX601SZ1D is a single-line ferrite bead from Murata's BLM series, delivering 600 Ohms impedance at 100 MHz. That impedance peak is where it absorbs conducted noise — common-mode or differential — on a power rail or signal trace. At DC the bead looks like 340 mOhm of resistance, so the voltage drop at 500 mA is about 170 mV; the 500 mA current rating is the DC bias limit before the ferrite core starts to saturate and the impedance drops off.
AEC-Q200 — automotive-grade qualification
This bead carries AEC-Q200 qualification, meaning it has passed the stress tests (temperature cycling, moisture resistance, mechanical shock) required for automotive electronics. For a non-automotive design the same part works fine — the qualification is just extra margin.
0402 footprint — layout consideration
It is a standard surface-mount footprint, reflow-solderable, and fits high-density PCB layouts. The tape-and-reel packaging (Cut Tape or full reel) suits pick-and-place assembly.
