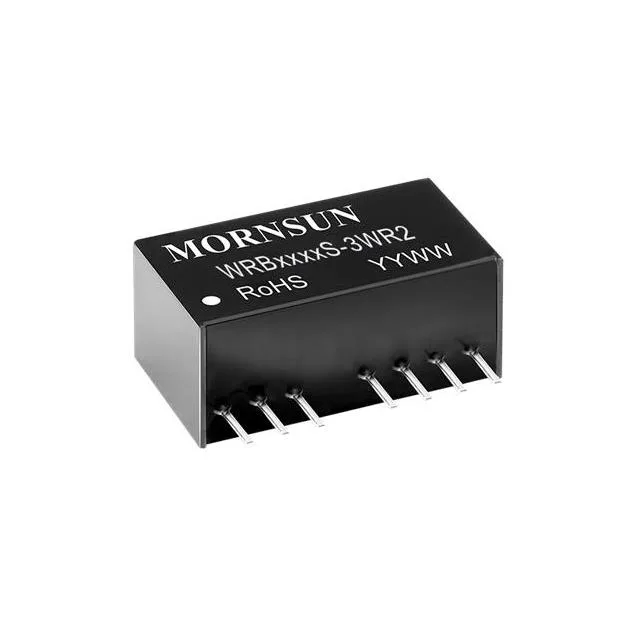

WRB4824S-3WR2 - Mornsun America, LLC
MPN WRB4824S-3WR2
Active
Spot Stock · 24-48h Dispatch
100% Original Sealed
In Stock: 5 pcs
MOQ: 1 pcs
Logistics: DHL / FedEx DAP (Global Express · 3-7d)
Russia & CIS DDP (Door-to-Door Cleared)
Dispatch: Shenzhen / HK
Unit Price (USD)
$5.77 / pc
Direct Purchase Ready
Volume Pricing Breaks Confirmed upon quotation
1+ pcs
$5.77
Working on a production BOM or have a target unit price? Submit Target Price
$5.77 / ea
5 in stock — maximum per order · 3–4 days lead time
Full Technical Specifications
18 Parameters| Parameter / Attribute | Specification / Value |
|---|---|
| Type | Isolated Module |
| Series | WRB_S-3WR2 (3W) |
| Mounting | Through Hole |
| Voltage - output 1 | 24V |
| Voltage - isolation | 1.5 kV |
| Voltage - input | 75V |
| Output current | 125mA |
| Power (Watts) | 3 W |
| I/O channels | 1 |
| Operating temperature | -40°C ~ 85°C (With Derating) |
| Size (Dimension) | 0.87\" L x 0.37\" W x 0.47\" H (22.0mm x 9.5mm x 12.0mm) |
| Approval agency | CE |
| Standard number | 60950-1 |
| Package | Tube |
| Features | Remote On/Off |
| Efficiency | 82% |
| Applications | ITE (Commercial) |
| Case | 8-SIP Module, 7 Leads |
