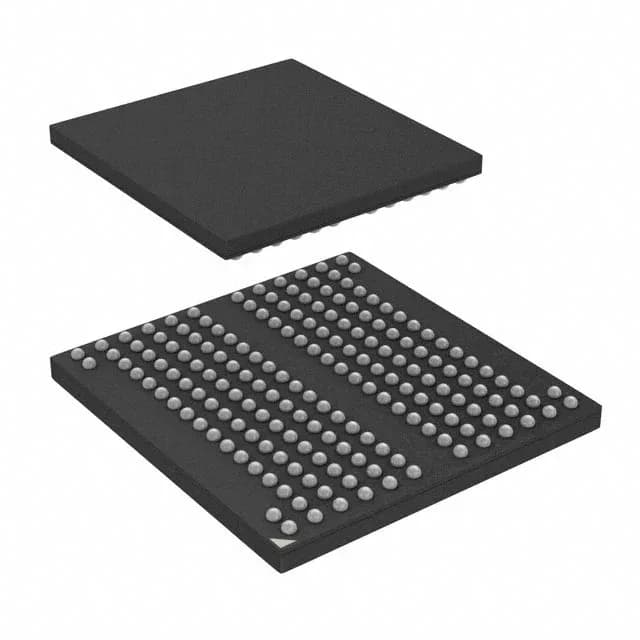

Micron MT52L256M32D1PF-107 WT:B, Mobile LPDDR3 SDRAM, 8 Gbit (256M x 32), 933 MHz clock, 1.2V supply, -30°C to 85°C TC, 178-VFBGA (11.5x11 mm), ROHS3 compliant.
| Parameter | Value |
|---|---|
| Memory type | Volatile |
| Mounting type | Surface Mount |
| Voltage | 1.2V |
| Frequency | 933 MHz |
| Operating temperature | -30°C ~ 85°C (TC) |
| Package | Tray |
| Technology | SDRAM - Mobile LPDDR3 |
| Memory size | 8Gbit |
| Memory format | DRAM |
| Case | 178-VFBGA |
| Memory organization | 256M x 32 |
Packaged in a 178-VFBGA (11.5x11 mm), this part is a surface-mount, tray-shipped component intended for high-volume reflow assembly. The -30°C to 85°C case-temperature range is wider than standard LPDDR3 parts — the -30°C low side covers cold-start scenarios in outdoor handhelds, automotive infotainment (non-AEC), and industrial portable terminals.
Supplier device package is 178-FBGA (11.5x11 mm). 178-ball VFBGA footprint.
It is an 8 Gbit mobile LPDDR3 SDRAM organized as 256M words x 32 bits per word.
Yes, it is rated ROHS3 Compliant.
The operating temperature range is -30°C to 85°C, measured at the case (TC).
