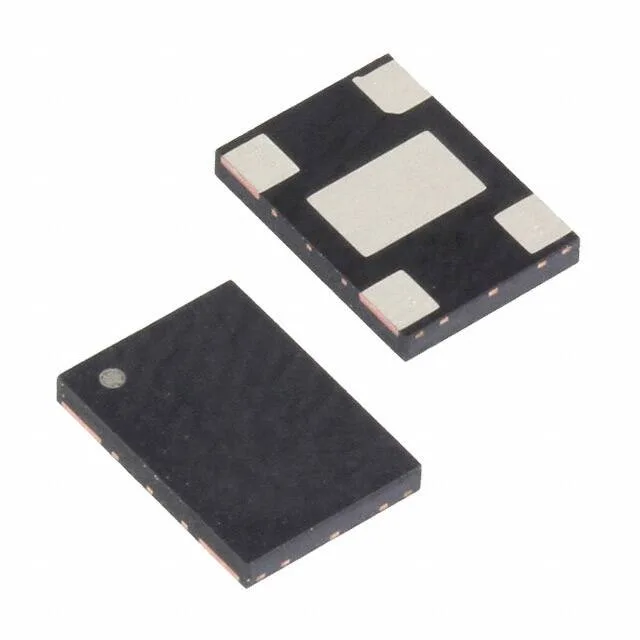

DSC8002DI2-PROGRAMMABLE
Microchip Technology
-40°C ~ 85°CTubeXO (Standard)
Lead time on requestGet quote
Microchip Technology DSC8002 Series
20 variants · Microchip Technology
About the Microchip Technology DSC8002 Series
The Microchip Technology DSC8002 Series series groups 20 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common available frequency range of 1 MHz ~ 150 MHz, base resonator of MEMS and case of 4-SMD, No Lead. Variants differ by frequency stability, frequency stability (Total) and operating temperature, so you can match the exact frequency stability your application requires using the selection guide below. The range mixes active and legacy part numbers, so you can source both current Microchip Technology DSC8002 Series variants and discontinued ones from a single page.
Select a variant by
- Frequency stability
- - · ±50ppm
- Frequency stability (Total)
- - · ±25ppm · ±50ppm
- Operating temperature
- -40°C ~ 85°C · -40°C~85°C · 0°C~70°C
- Package
- Tape & Reel (TR) · Tube
- Size (Dimension)
- 0.126\" L x 0.098\" W (3.20mm x 2.50mm) · 0.197\" L x 0.126\" W (5.00mm x 3.20mm) · 0.276\" L x 0.197\" W (7.00mm x 5.00mm)
Shared specifications
- Available frequency range
- 1 MHz ~ 150 MHz
- Base resonator
- MEMS
- Case
- 4-SMD, No Lead
- Current - supply
- 10mA
- Current - supply (Disable)
- 1 µA
- Function
- Standby
- Height - seated
- 0.035\" (0.90mm)
- Mounting
- Surface Mount
- Output
- CMOS
- Ratings
- -
- Spread spectrum bandwidth
- -
- Type
- XO (Standard)
Variant comparison
| Parameter | DSC8002AI1 | DSC8002AI1-PROGRAMMABLE | DSC8002AI2 | DSC8002AI2-PROGRAMMABLE | DSC8002BI1 | DSC8002BI1T |
|---|---|---|---|---|---|---|
| Frequency stability | - | - | - | - | ±50ppm | ±50ppm |
| Frequency stability (Total) | ±50ppm | ±50ppm | ±25ppm | ±25ppm | - | - |
| Operating temperature | -40°C~85°C | -40°C ~ 85°C | -40°C~85°C | -40°C ~ 85°C | -40°C~85°C | -40°C~85°C |
| Package | Tube | Tube | Tube | Tube | Tube | Tape & Reel (TR) |
| Size (Dimension) | 0.276\" L x 0.197\" W (7.00mm x 5.00mm) | 0.276\" L x 0.197\" W (7.00mm x 5.00mm) | 0.276\" L x 0.197\" W (7.00mm x 5.00mm) | 0.276\" L x 0.197\" W (7.00mm x 5.00mm) | 0.197\" L x 0.126\" W (5.00mm x 3.20mm) | 0.197\" L x 0.126\" W (5.00mm x 3.20mm) |
Request a quote on any Microchip Technology DSC8002 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
