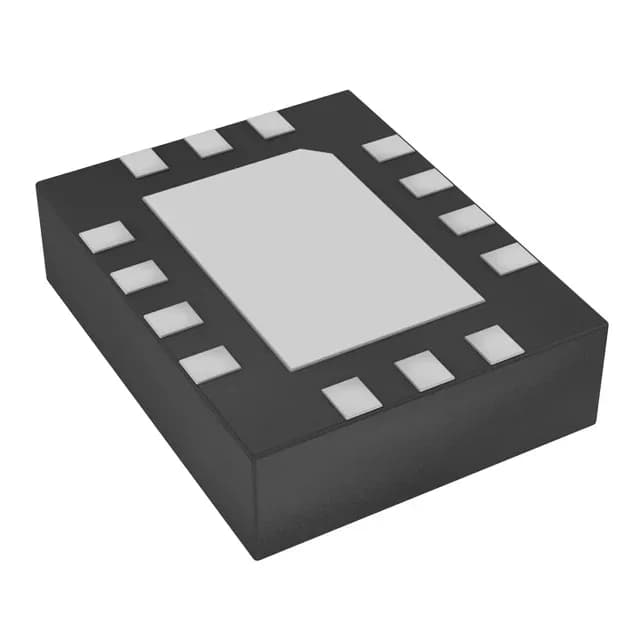

DSC557-0343FI0
Microchip Technology
Tube-40°C~85°C100MHz
Ref. price$2.9400
Lead time on requestGet quote ›
Microchip Technology DSC5 Series
5 variants · Microchip Technology
About the Microchip Technology Microchip Technology DSC5 Series series
The Microchip Technology Microchip Technology DSC5 Series series groups 5 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common differential - Input:Output of No/Yes, input of - and main purpose of PCI Express (PCIe). Variants differ by case, frequency and operating temperature, so you can match the exact case your application requires using the selection guide below. All listed Microchip Technology DSC5 Series part numbers are active and orderable.
Select a variant by
- Case
- 14-VFQFN Exposed Pad · 20-VFQFN Exposed Pad
- Frequency
- 100MHz · 460MHz
- Operating temperature
- -40°C ~ 105°C · -40°C~85°C · -40°C~105°C
- Output
- HCSL · HCSL, LVDS · LVDS
- Package
- Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT) · Tube
- Ratio - Input:Output
- 0:2 · 0:4
Variant comparison
| Parameter | DSC557-0343FI0 | DSC557-0344FI0T | DSC557-0344FL1T | DSC557-053333KL1T | DSC557-053344KL1T |
|---|---|---|---|---|---|
| Case | 14-VFQFN Exposed Pad | 14-VFQFN Exposed Pad | 14-VFQFN Exposed Pad | 20-VFQFN Exposed Pad | 20-VFQFN Exposed Pad |
| Frequency | 100MHz | 100MHz | 100MHz | 460MHz | 100MHz |
| Operating temperature | -40°C~85°C | -40°C~85°C | -40°C ~ 105°C | -40°C~105°C | -40°C~105°C |
| Output | HCSL, LVDS | HCSL | HCSL | LVDS | HCSL, LVDS |
| Package | Tube | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) |
| Ratio - Input:Output | 0:2 | 0:2 | 0:2 | 0:4 | 0:4 |
Shared specifications
- Differential - Input:Output
- No/Yes
- Input
- -
- Main purpose
- PCI Express (PCIe)
- Mounting type
- Surface Mount
- Number of circuits
- 1
- PLL
- Yes
- Voltage
- 2.25V ~ 3.6V
Request a quote on any Microchip Technology DSC5 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Microchip Technology Microchip Technology DSC5 Series variants differ?
- Microchip Technology DSC5 Series part numbers differ by case, frequency, operating temperature and output. Use the selection guide above to pick by case.
- How many Microchip Technology Microchip Technology DSC5 Series part numbers are listed?
- 5 Microchip Technology Microchip Technology DSC5 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Microchip Technology Microchip Technology DSC5 Series?
- Request a quote (RFQ) for any Microchip Technology DSC5 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
