Microchip Technology PIC32MM0016GPL028-E/M6 — Microcontrollers & Processors (MCU / MPU / DSP)

Microchip PIC32MM0016GPL028-E/M6 32-bit MCU, 25 MHz

MPNPIC32MM0016GPL028-E/M6
End of Life

Microchip PIC® 32MM series, PIC32MM0016GPL028-E/M6, 32-bit MIPS32® microAptiv™ MCU, 25 MHz, 16 KB Flash, 4K x 8 RAM, 22 I/O, 28-UFQFN Exposed Pad, -40°C to 125°C.

$1.9Ref. price · indicative, final on quote
Microchip Technology PIC32MM0016GPL028-E/M6 datasheet (PDF)

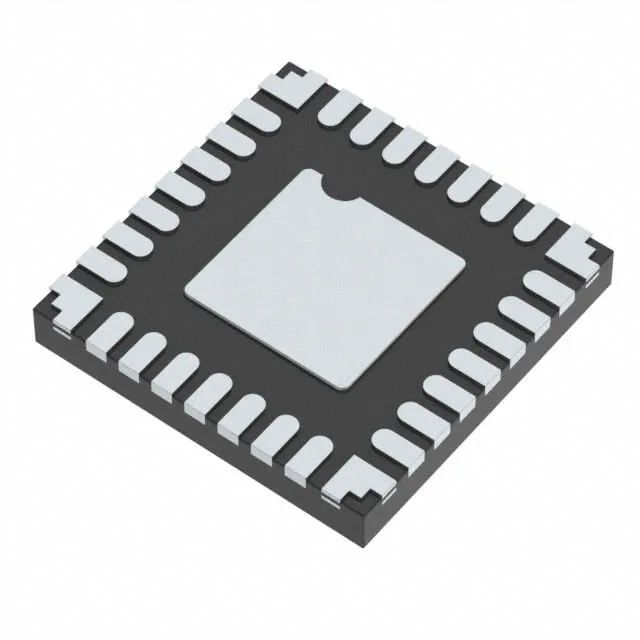

Packaging28-UFQFN Exposed Pad
SeriesPIC® 32MM
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

PIC32MM0016GPL028-E/M6 specifications
ParameterValue
SeriesPIC® 32MM
MountingSurface Mount
Oscillator typeInternal
Program memory typeFLASH
Voltage - supply (Vcc (Vdd))2V ~ 3.6V
Operating temperature-40°C ~ 125°C (TA)
Speed25MHz
PackageTube
RAM size4K x 8
Core size32-Bit Single-Core
PeripheralsBrown-out Detect/Reset, HLVD, I²S, POR, PWM, WDT
ConnectivityIrDA, LINbus, SPI, UART/USART
Number of i (O)22
Core processorMIPS32® microAptiv™
Case28-UFQFN Exposed Pad
Data convertersA/D 12x10/12b; D/A 1x5b
Program memory size16KB (16K x 8)

Product details

25 MHz MIPS32 microAptiv core in a 4x4 mm UQFN

The Microchip PIC32MM0016GPL028-E/M6 is a 32-bit single-core MCU built around the MIPS32 microAptiv processor, clocked at 25 MHz.

Supply rail and peripheral set for sensor and control loops

The MCU operates from a 2V to 3.6V supply rail, which allows direct connection to a single lithium-ion cell or a regulated 3.3V bus without an extra LDO. On-chip peripherals include a 12-channel ADC with 10- or 12-bit resolution, a single 5-bit DAC, and a PWM module for motor or LED drive.

Package and thermal pad — layout considerations

The 0.50 mm pitch limits breakout to a 4-layer board if all 22 I/O are used; a 2-layer board can route the inner rows but may need via-in-pad for the exposed-pad ground connection. Surface-mount assembly follows standard lead-free reflow profiles.

Frequently asked questions

Does PIC32MM0016GPL028-E/M6 have a built-in DAC and how many ADC channels?

Yes, it includes a single 5-bit DAC. The ADC has 12 multiplexed channels that can be configured for 10-bit or 12-bit resolution.

What is the difference between PIC32MM0016GPL028-E/M6 and PIC32MM0016GPL028-I/M6?

The -E variant is the same silicon but screened and tested for the wider temperature envelope, making it the correct choice for under-hood or high-ambient environments.

How do I get current pricing and availability for PIC32MM0016GPL028-E/M6?

Pricing and stock levels are confirmed at quote time. Submit an RFQ through the storefront; the order is sourced against the requested quantity from independent distribution channels. No stock-holding claim is made here — availability is verified per inquiry.
