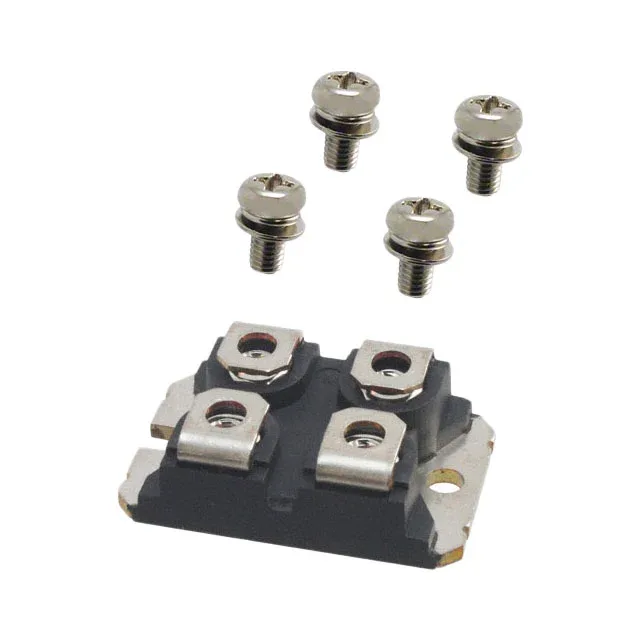

Microchip Technology MSC025SMA120J
MPNMSC025SMA120J
End of Life
SICFET N-CH 1.2KV 77A SOT227
$55.51Ref. price · indicative, final on quote
PackagingSOT-227-4, miniBLOC
RoHSRoHS Compliant
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| FET type | N-Channel |
| Mounting | Chassis Mount |
| Drain to source voltage | 1200 V |
| Drive voltage (Max rds on, min rds on) | 20V |
| Current - continuous drain (Id) @ 25°C | 77A (Tc) |
| Power dissipation | 278W (Tc) |
| Operating temperature | -55°C ~ 175°C (TJ) |
| Package | Tube |
| Vgs | +25V, -10V |
| Technology | SiCFET (Silicon Carbide) |
| Case | SOT-227-4, miniBLOC |
| Vgs(th) (Max) @ id | 2.8V @ 1mA |
| Rds on (Max) @ id, vgs | 31mOhm @ 40A, 20V |
| Gate charge (Qg) (Max) @ vgs | 232 nC @ 20 V |
| Input capacitance (Ciss) (Max) @ vds | 3020 pF @ 1000 V |
