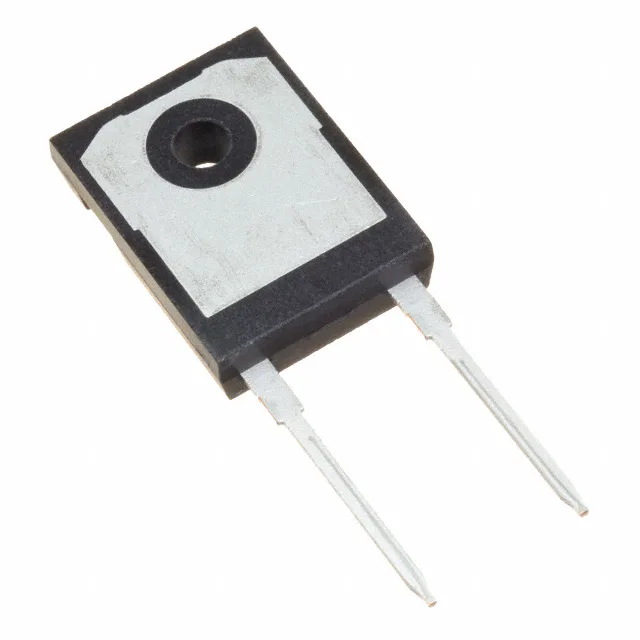

Microchip Technology MSC010SDA070B
MPNMSC010SDA070B
End of Life
DIODE SIL CARBIDE 700V 24A TO247
$3.54Ref. price · indicative, final on quote
PackagingTO-247-2
RoHSROHS3 Compliant
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Through Hole |
| Voltage - DC reverse (Vr) | 700 V |
| Voltage - forward (Vf) (Max) @ if | 1.8 V @ 10 A |
| Current - reverse leakage @ vr | 200 µA @ 700 V |
| Current - average rectified | 24A |
| Operating temperature - junction | -55°C ~ 175°C |
| Speed | No Recovery Time > 500mA (Io) |
| Package | Tube |
| Technology | SiC (Silicon Carbide) Schottky |
| Case | TO-247-2 |
| Capacitance @ vr, | 353pF @ 1V, 1MHz |
| Reverse recovery time | 0 ns |
