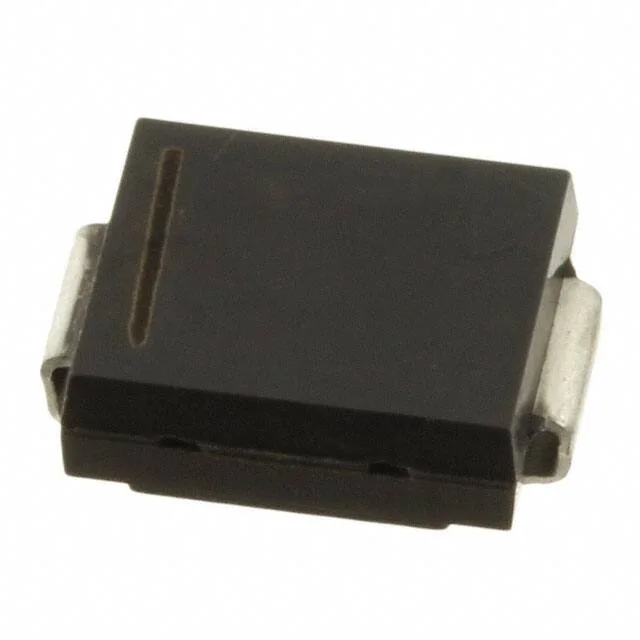

HSM8100JE3/TR13
Microchip Technology
DIODE SCHOTTKY 100V 8A DO214AB
[IN STOCK] In Stock: 1 pcs
MOQ 1 · Tape & Reel (TR); Cut Tape (CT) · RoHS · EIA-481 · DAP/DDP · T/T
Technical specifications
| Parameter / Attribute | Specification / Value |
|---|---|
| Diode type | Schottky |
| Mounting | Surface Mount |
| Voltage - DC reverse (Vr) | 100 V |
| Voltage - forward (Vf) (Max) @ if | 780 mV @ 8 A |
| Current - reverse leakage @ vr | 500 µA @ 100 V |
| Current - average rectified | 8A |
| Operating temperature - junction | -55°C ~ 175°C |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Case | DO-214AB, SMC |
HSM8100JE3/TR13
