MEMS-based XO with LVDS output and AEC-Q100 qualification
The DSC8123AI2-PROGRAMMABLE: Frequency stability is ±25 ppm total over the operating range, covering initial tolerance, temperature drift, and aging in one specification.

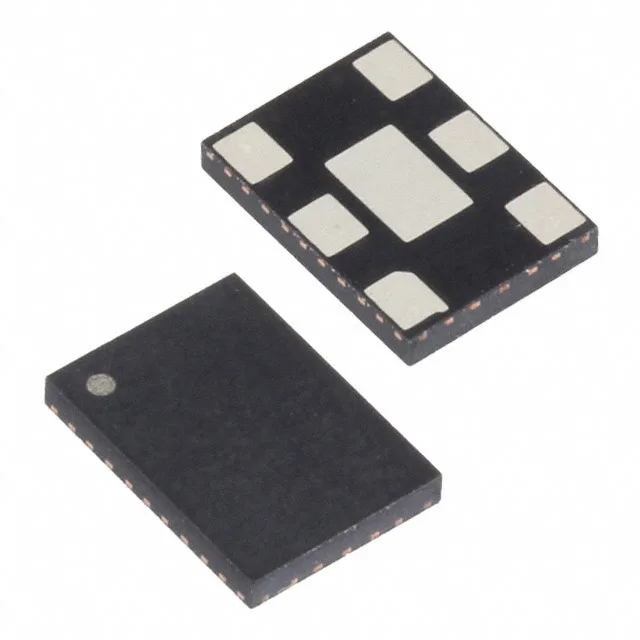

Microchip DSC8123AI2-PROGRAMMABLE MEMS XO, LVDS, 10-460 MHz
MPNDSC8123AI2-PROGRAMMABLE
Active
Microchip Technology DSC8123 series, MEMS XO (Standard), LVDS output, 6-SMD No Lead, AEC-Q100, frequency range 10 MHz to 460 MHz, ±25 ppm stability.
$24.2700Ref. price · indicative, final on quote
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Type | XO (Standard) |
| Series | DSC8123 |
| Mounting | Surface Mount |
| Supply voltage | 2.25V ~ 3.6V |
| Current - supply | 32mA |
| Current - supply (Disable) | 22 mA |
| Available frequency range | 10 MHz ~ 460 MHz |
| Frequency stability (Total) | ±25ppm |
| Operating temperature | -40°C ~ 85°C |
| Size (Dimension) | 0.276\" L x 0.197\" W (7.00mm x 5.00mm) |
| Height - seated | 0.035\" (0.90mm) |
| Output | LVDS |
| Package | Tube |
| Ratings | AEC-Q100 |
| Function | Enable/Disable |
| Base resonator | MEMS |
| Case | 6-SMD, No Lead |
Product details
Frequently asked questions
What is the DSC8123AI2-PROGRAMMABLE's output type and frequency range?
It provides LVDS output and covers a programmable frequency range of 10 MHz to 460 MHz with ±25 ppm total stability.
