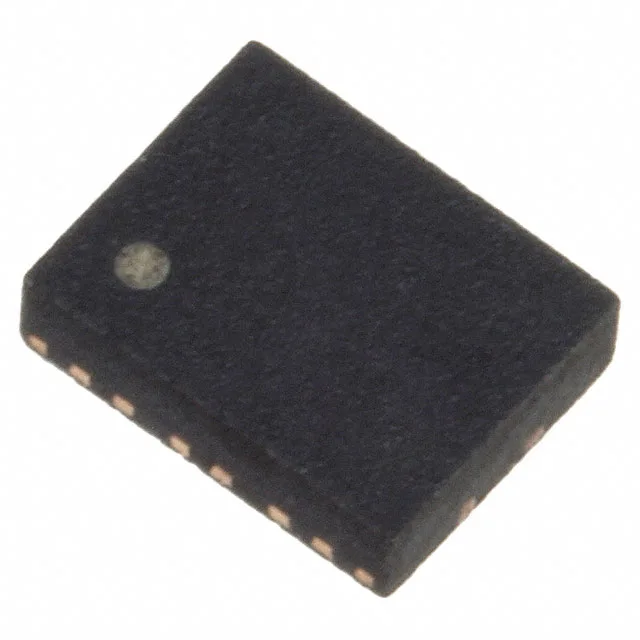

Microchip Technology DSC8121CI2-PROGRAMMABLE, MEMS-based XO (Standard), CMOS output, 10 MHz ~ 170 MHz, ±25 ppm total stability, 2.25V ~ 3.6V supply, -40°C ~ 85°C, 6-SMD No Lead, Enable/Disable function.
| Parameter | Value |
|---|---|
| Type | XO (Standard) |
| Series | DSC8121 |
| Mounting | Surface Mount |
| Supply voltage | 2.25V ~ 3.6V |
| Current - supply | 35mA |
| Current - supply (Disable) | 22 mA |
| Available frequency range | 10 MHz ~ 170 MHz |
| Frequency stability (Total) | ±25ppm |
| Operating temperature | -40°C ~ 85°C |
| Size (Dimension) | 0.126\" L x 0.098\" W (3.20mm x 2.50mm) |
| Height - seated | 0.035\" (0.90mm) |
| Output | CMOS |
| Package | Tube |
| Function | Enable/Disable |
| Base resonator | MEMS |
| Case | 6-SMD, No Lead |
The DSC8121CI2-PROGRAMMABLE: The MEMS resonator eliminates the quartz-crystal startup and aging drift — the part is factory-programmable, so one BOM line covers multiple frequencies by ordering the pre-programmed variant.
