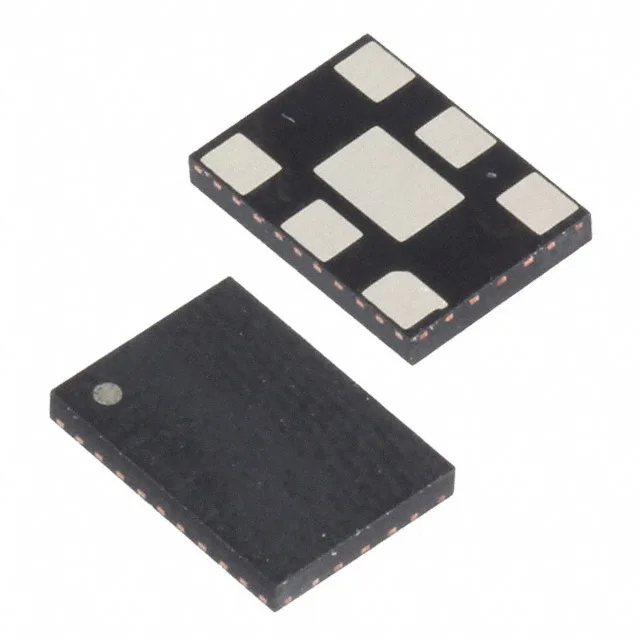

Microchip Technology DSC8104 series XO (Standard), MEMS, HCSL output, 10 MHz ~ 460 MHz, ±10 ppm stability, 2.25V ~ 3.6V supply, 42 mA max, AEC-Q100, 6-SMD No Lead, Tube.
| Parameter | Value |
|---|---|
| Type | XO (Standard) |
| Series | DSC8104 |
| Mounting | Surface Mount |
| Supply voltage | 2.25V ~ 3.6V |
| Current - supply | 42mA |
| Current - supply (Disable) | 95 µA |
| Available frequency range | 10 MHz ~ 460 MHz |
| Frequency stability (Total) | ±10ppm |
| Operating temperature | -40°C ~ 85°C |
| Size (Dimension) | 0.276\" L x 0.197\" W (7.00mm x 5.00mm) |
| Height - seated | 0.035\" (0.90mm) |
| Output | HCSL |
| Package | Tube |
| Ratings | AEC-Q100 |
| Function | Standby |
| Base resonator | MEMS |
| Case | 6-SMD, No Lead |
The DSC8104AI5-PROGRAMMABLE: No pin-compatible drop-in replacement is documented; a board-level evaluation of a functionally equivalent MEMS XO with HCSL output and the same 6-SMD footprint would be required for new designs.
Pricing and current availability are confirmed at quote time — submit an RFQ for your target quantity.
It is a standard XO with HCSL differential output, covering a programmable frequency range of 10 MHz to 460 MHz. The MEMS resonator provides ±10 ppm total frequency stability.
