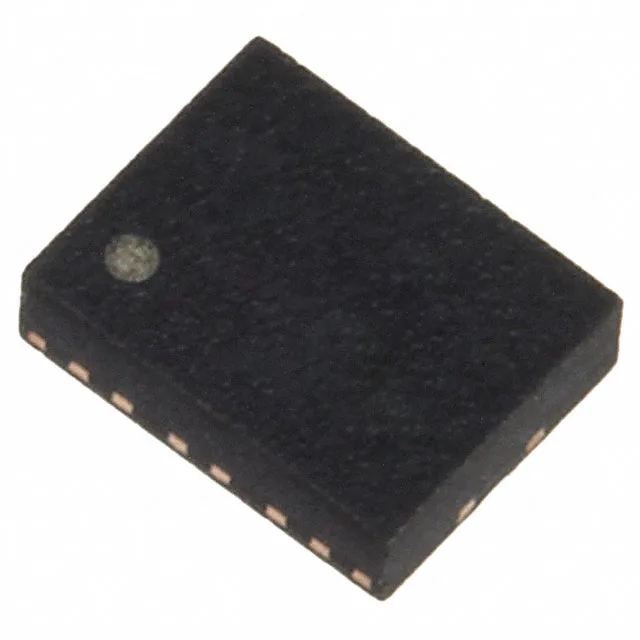

Microchip Technology DSC8101 series, XO (Standard) MEMS oscillator, DSC8101CI5-PROGRAMMABLE, CMOS output, 10 MHz ~ 170 MHz, ±10 ppm stability, 2.25V ~ 3.6V supply, -40°C ~ 85°C, 6-SMD No Lead.
| Parameter | Value |
|---|---|
| Type | XO (Standard) |
| Series | DSC8101 |
| Mounting | Surface Mount |
| Supply voltage | 2.25V ~ 3.6V |
| Current - supply | 35mA |
| Current - supply (Disable) | 95 µA |
| Available frequency range | 10 MHz ~ 170 MHz |
| Frequency stability (Total) | ±10ppm |
| Operating temperature | -40°C ~ 85°C |
| Size (Dimension) | 0.126\" L x 0.098\" W (3.20mm x 2.50mm) |
| Height - seated | 0.035\" (0.90mm) |
| Output | CMOS |
| Package | Tube |
| Function | Standby |
| Base resonator | MEMS |
| Case | 6-SMD, No Lead |
The DSC8101CI5-PROGRAMMABLE: At 35 mA max active current, the power draw is predictable for thermal budgeting in a 6-SMD, no-lead package.
The ±10 ppm total stability includes temperature, supply, and aging variation, so the system's PLL doesn't need extra margin.
