The output is HCSL (High-Speed Current Steering Logic), the same differential signalling used in PCIe reference clocks, so it drives a 100-ohm differential pair directly without external termination resistors.
Frequency stability and supply range
The supply voltage spans 2.25 V to 3.6 V, so the same BOM line works across 2.5 V and 3.3 V rails without a separate regulator or LDO for the oscillator.
Active supply current is 42 mA max at 100 MHz, which is typical for an HCSL output stage driving a 50-ohm terminated line.
Package and board layout notes

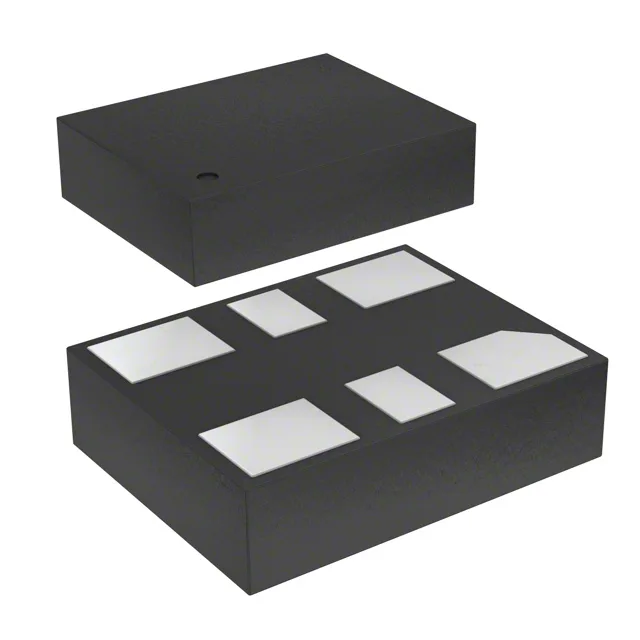

Housed in a 6-VDFN package measuring 5.00 mm x 3.20 mm with a seated height of 0.90 mm — a low-profile, surface-mount footprint that fits under a heatsink or in a tight card cage.
