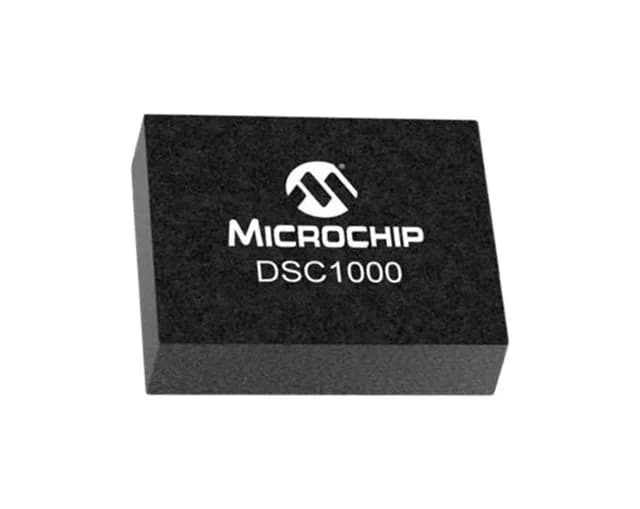

Microchip Technology DSC100 series, DSC1000BL5-PROGT blank programmable oscillator, 4-VDFN package, 5.00mm x 3.20mm, user must program frequency.
| Parameter | Value |
|---|---|
| Series | DSC100 |
| Mounting | Surface Mount |
| Programmable type | Blank (User Must Program) |
| Size (Dimension) | 0.197\" L x 0.126\" W (5.00mm x 3.20mm) |
| Height - seated | 0.035\" (0.90mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Case | 4-VDFN |
The DSC1000BL5-PROGT is an active-production blank programmable oscillator from Microchip's DSC100 series — the user programs the output frequency before placement, not a pre-configured fixed-frequency part. Housed in a 4-VDFN package measuring 5.00mm x 3.20mm with a seated height of 0.90mm, it fits the standard 5x3.2 mm oscillator footprint common in industrial and embedded designs.
The DSC1000BL5-PROGT is a blank programmable device — the user must program the output frequency using Microchip's programming tools before reflow. No pre-programmed frequency is set at shipment.
