Microchip Technology APT45GP120JDQ2
MPNAPT45GP120JDQ2
End of Life
IGBT MOD 1200V 75A 329W ISOTOP
$45.8Ref. price · indicative, final on quote
PackagingISOTOP
RoHSRoHS Compliant
SeriesPOWER MOS 7®
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | POWER MOS 7® |
| IGBT type | PT |
| Mounting | Chassis Mount |
| Voltage - collector emitter breakdown | 1200 V |
| Current - collector (Ic) | 75 A |
| Current - collector cutoff | 750 µA |
| Power - max | 329 W |
| Operating temperature | -55°C ~ 150°C (TJ) |
| Input | Standard |
| Package | Tube |
| Configuration | Single |
| NTC thermistor | No |

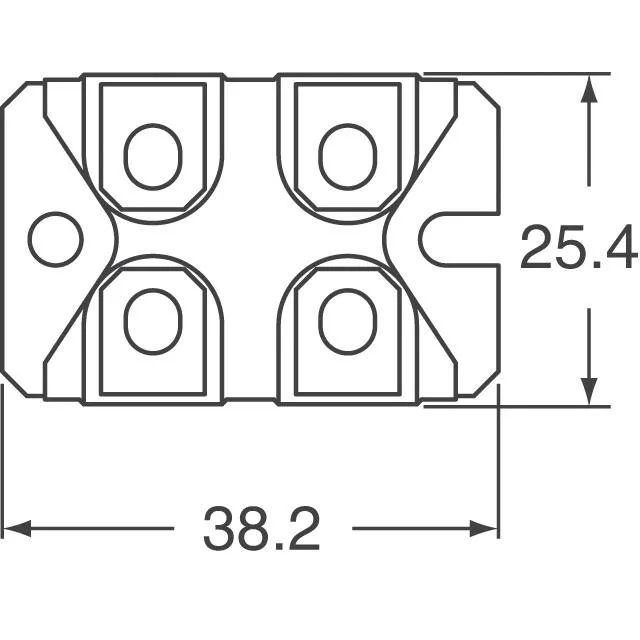

| Case | ISOTOP |
| Vce(on) (Max) @ vge, ic | 3.9V @ 15V, 45A |
| Input capacitance (Cies) @ vce | 4 nF @ 25 V |
