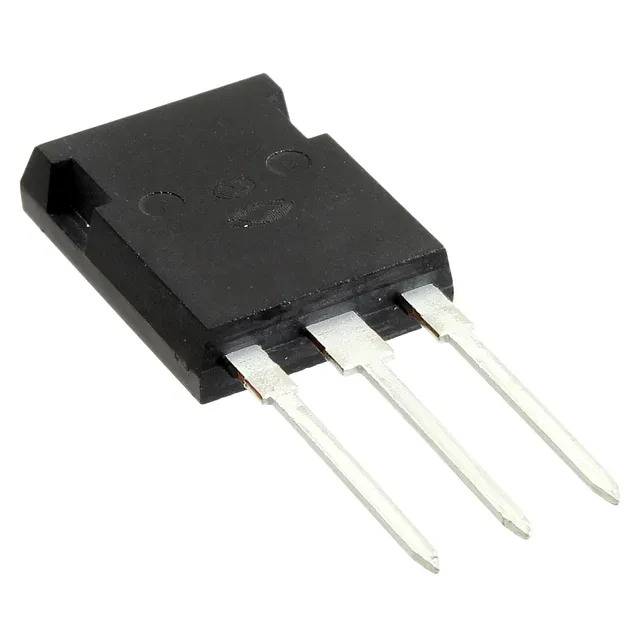

Microchip Technology APT15GP60BDQ1G
MPNAPT15GP60BDQ1G
End of Life
IGBT 600V 56A 250W TO247
$5.4Ref. price · indicative, final on quote
PackagingTO-247-3
RoHSROHS3 Compliant
SeriesPOWER MOS 7®
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | POWER MOS 7® |
| IGBT type | PT |
| Input type | Standard |
| Mounting | Through Hole |
| Voltage - collector emitter breakdown | 600 V |
| Current - collector (Ic) | 56 A |
| Current - collector pulsed | 65 A |
| Power - max | 250 W |
| Operating temperature | -55°C ~ 150°C (TJ) |
| Package | Tube |
| Gate charge | 55 nC |
| Case | TO-247-3 |
| Test condition | 400V, 15A, 5Ohm, 15V |
| Switching energy | 130µJ (on), 120µJ (off) |
| Td (on/off) @ 25°C | 8ns/29ns |
| Vce(on) (Max) @ vge, ic | 2.7V @ 15V, 15A |
