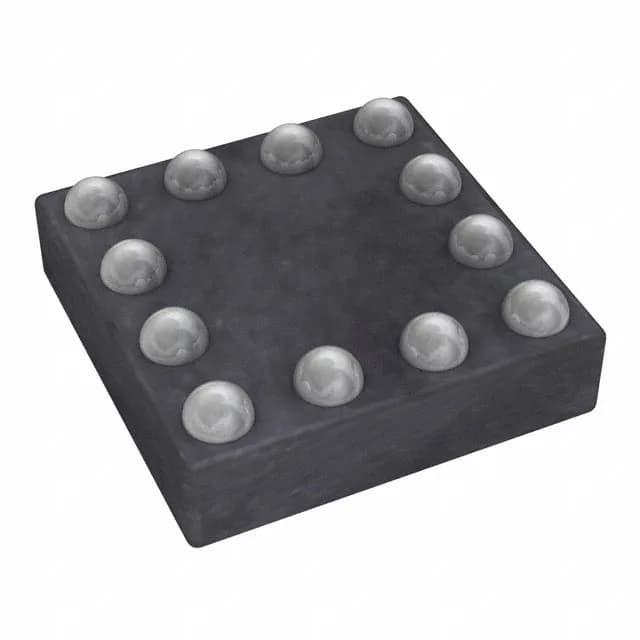

MMC34160PJ 3-Axis I2C Magnetometer 12BGA — Memsic | ICBOMS
MPN MMC34160PJ
Active
Spot Stock · 24-48h Dispatch
100% Original Sealed
SENSOR MAGMTR I2C 12BGA
In Stock: 91,320 pcs
MOQ: 1 pcs
Logistics: DHL / FedEx DAP (Global Express · 3-7d)
Russia & CIS DDP (Door-to-Door Cleared)
Dispatch: Shenzhen / HK
Unit Price (USD)
$4.94 / pc
Direct Purchase Ready
Volume Pricing Breaks Confirmed upon quotation
1+ pcs
$4.94
10+ pcs
$4.45
30+ pcs
$4.05
100+ pcs
$3.66
500+ pcs
$3.41
1,000+ pcs
$3.21
Working on a production BOM or have a target unit price? Submit Target Price
[SPEC] Essential Parameters Snapshot Full Specifications (13)
Package / Case 12-WFBGA
Supply Voltage 1.62V ~ 3.6V
Full Technical Specifications
13 Parameters| Parameter / Attribute | Specification / Value |
|---|---|
| Output type | I²C |
| Mounting | Surface Mount |
| Supply voltage | 1.62V ~ 3.6V |
| Current - supply | 140µA |
| Operating temperature | -40°C ~ 85°C (TA) |
| Bandwidth | 800Hz |
| Axis | X, Y, Z |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Sleep Mode, Temperature Compensated |
| Resolution | 16 b |
| Technology | Magnetoresistive |
| Sensing distance | ±1.6mT |
| Case | 12-WFBGA |
