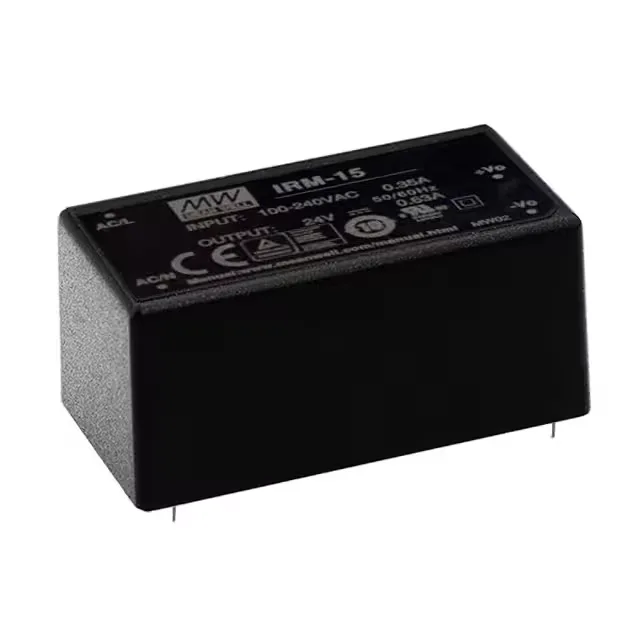

IRM-15-24
MEAN WELL USA Inc.
[IN STOCK] In Stock: 304 pcs
MOQ 1 · Box · RoHS · EIA-481 · DAP/DDP · T/T
Technical specifications
| Parameter / Attribute | Specification / Value |
|---|---|
| Type | Enclosed |
| Series | IRM-15 (15W) |
| Mounting | Through Hole |
| Voltage - input | 85 ~ 305 VAC, 120 ~ 430 VDC |
| Voltage - output 1 | 24V |
| Output current | 630mA |
| Power (Watts) | 15 W |
| I/O channels | 1 |
| Operating temperature | -30°C~70°C(WithDerating) |
| Size (Dimension) | 2.06\" L x 1.07\" W x 0.94\" H (52.4mm x 27.2mm x 24.0mm) |
| Approval agency | CB, CE, cURus, TUV |
| Package | Box |
| Features | Universal Input |
| Efficiency | 83% |
| Applications | ITE (Commercial) |
| Case | 4-DIP Module |
| Line regulation | ±0.3% |
| Load regulation | ±0.5% |
