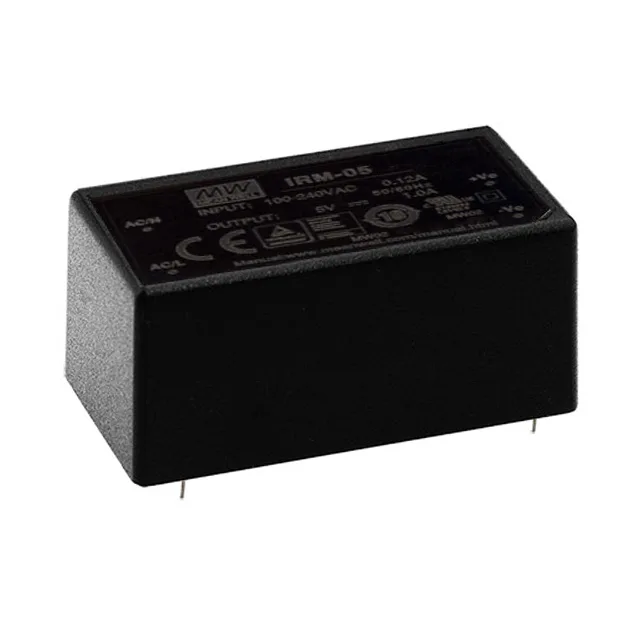

IRM-05-5
MEAN WELL USA Inc.
[IN STOCK] In Stock: 1,673 pcs
MOQ 1 · Box · RoHS · EIA-481 · DAP/DDP · T/T
Technical specifications
| Parameter / Attribute | Specification / Value |
|---|---|
| Type | Enclosed |
| Series | IRM-05 (5W) |
| Mounting | Through Hole |
| Voltage - input | 85 ~ 305 VAC, 120 ~ 430 VDC |
| Voltage - output 1 | 5V |
| Output current | 1A |
| Power (Watts) | 5 W |
| I/O channels | 1 |
| Operating temperature | -30°C ~ 70°C (With Derating) |
| Size (Dimension) | 1.80\" L x 1.00\" W x 0.85\" H (45.7mm x 25.4mm x 21.5mm) |
| Approval agency | CB, CE, cURus, EAC, TUV |
| Package | Box |
| Features | Universal Input |
| Efficiency | 71% |
| Applications | ITE (Commercial) |
| Case | 4-DIP Module |
| Line regulation | ±0.3% |
| Load regulation | ±0.5% |
