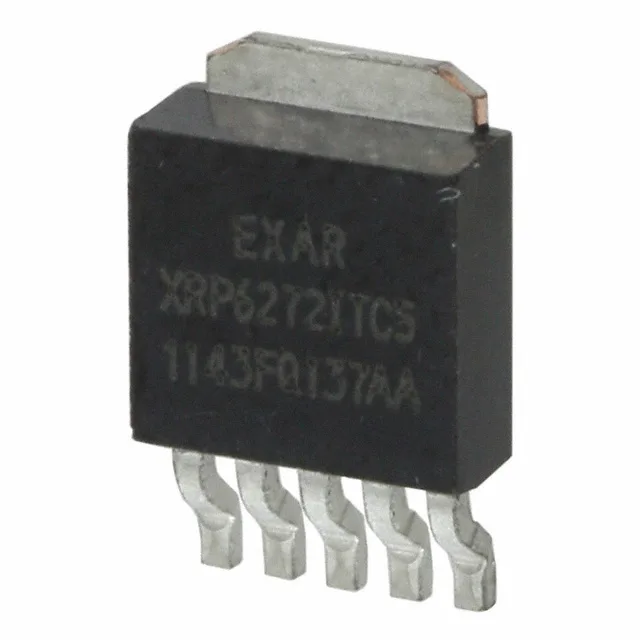

XRP6272ITC5TR-F
MaxLinear, Inc.
IC REG LIN POS ADJ 2A TO252-5
[IN STOCK] In Stock: 4,112 pcs
MOQ 1 · Tape & Reel (TR); Cut Tape (CT) · RoHS · EIA-481 · DAP/DDP · T/T
Technical specifications
| Parameter / Attribute | Specification / Value |
|---|---|
| Output type | Adjustable (Fixed) |
| Mounting | Surface Mount |
| Voltage - input | 6V |
| Voltage dropout | 0.6V @ 2A |
| Voltage - output | 5.4V |
| Voltage - output (Min (Fixed)) | 0.7V (5V) |
| Output current | 2A |
| Current - quiescent | 50 µA |
| Operating temperature | -40°C ~ 85°C |
| PSRR | 70dB (1kHz) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Case | TO-252-6, DPak (5 Leads + Tab) |
| Control features | Enable, Power Good |
| Protection features | Over Current, Over Temperature, Soft Start |
| Number of regulators | 1 |
| Output configuration | Positive |
XRP6272ITC5TR-F
