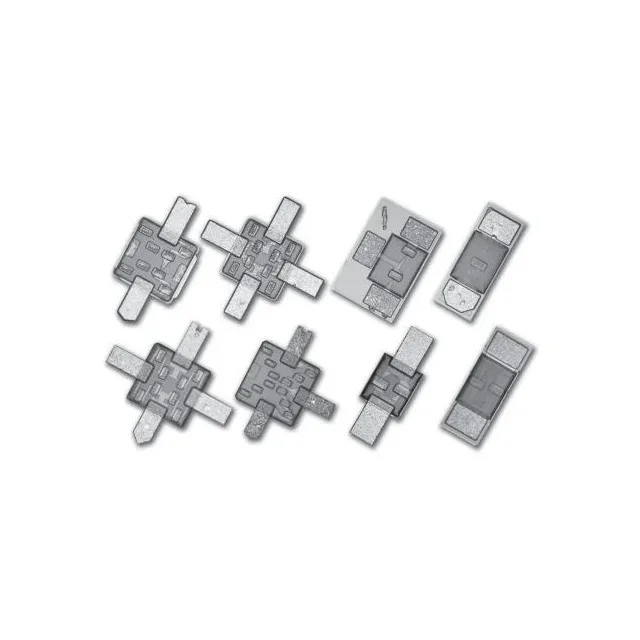

MACOM Technology Solutions MGS802
MPN MGS802
Active
Spot Stock · 24-48h Dispatch
100% Original Sealed
SCHOTTKY DIODE,GAAS-CHIP,GC210
In Stock: 809 pcs
MOQ: 1 pcs
Logistics: DHL / FedEx DAP (Global Express · 3-7d)
Russia & CIS DDP (Door-to-Door Cleared)
Dispatch: Shenzhen / HK
Unit Price (USD)
$12.03 / pc
Direct Purchase Ready
Volume Pricing Breaks Confirmed upon quotation
1+ pcs
$12.03
10+ pcs
$10.83
30+ pcs
$9.86
100+ pcs
$8.90
500+ pcs
$8.30
Working on a production BOM or have a target unit price? Submit Target Price
[SPEC] Essential Parameters Snapshot Full Specifications (10)
Package / Case Die
Full Technical Specifications
10 Parameters| Parameter / Attribute | Specification / Value |
|---|---|
| Series | MGS8xx |
| Diode type | Schottky - Anti-Parallel |
| Voltage - peak reverse | 5V (Min) |
| Current - max | 50 mA |
| Power dissipation | 75 mW |
| Operating temperature | -65°C ~ 150°C |
| Package | Tray |
| Case | Die |
| Resistance @ if, | 7Ohm @ 5mA, 1MHz |
| Capacitance @ vr, | 0.1pF @ 0V, 1MHz |
Series Sibling Variants
MACOM Technology Solutions MGS8xx Series Models
Sibling variants, package options, and speed/density grades in this MACOM Technology Solutions semiconductor series. Active Shenzhen warehouse allocation and rapid 24-48h dispatch.
MGS802
Verified Allocation
