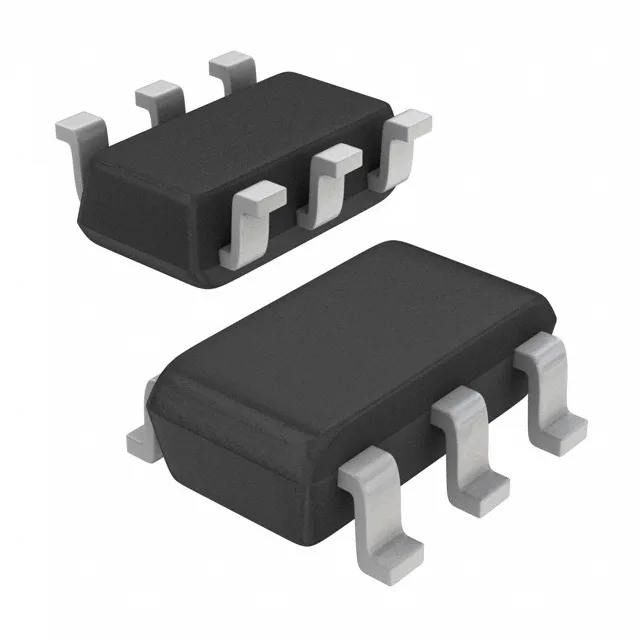

Littelfuse Inc. SRV05-4HTG-D
MPNSRV05-4HTG-D
Active
$0.8600Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Steering (Rail to Rail) |
| Series | SRV05, SPA® |
| Mounting | Surface Mount |
| Voltage - breakdown | 6V |
| Voltage - clamping (Max) @ ipp | 15V |
| Voltage - reverse standoff | 6V (Max) |
| Current - peak pulse (10/1000μs) | 10A (8/20µs) |
| Power - peak pulse | 150W |
| Power line protection | Yes |
| Capacitance @ frequency | 1pF @ 1MHz |
| Operating temperature | -40°C ~ 125°C (TA) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Applications | Ethernet |
| Case | SOT-23-6 |
| Unidirectional channels | 4 |
