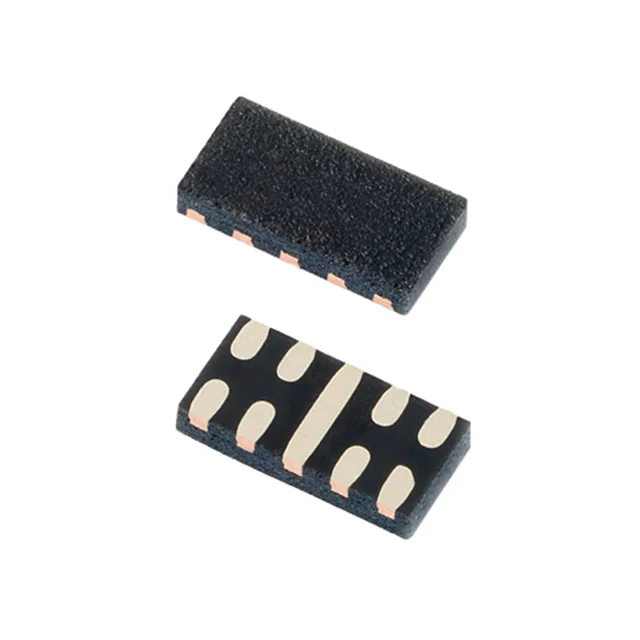

SP3012-04UTG
Littelfuse Inc.
[IN STOCK] In Stock: 4,532 pcs
MOQ 5 · Tape & Reel (TR); Cut Tape (CT) · RoHS · EIA-481 · DAP/DDP · T/T
Technical specifications
| Parameter / Attribute | Specification / Value |
|---|---|
| Type | Steering (Rail to Rail) |
| Series | Automotive, AEC-Q101, SP3012, SPA® |
| Mounting | Surface Mount |
| Voltage - clamping (Max) @ ipp | 7V (Typ) |
| Voltage - reverse standoff | 5V (Max) |
| Current - peak pulse (10/1000μs) | 4A (8/20µs) |
| Power line protection | Yes |
| Capacitance @ frequency | 0.5pF @ 1MHz |
| Operating temperature | -40°C~125°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Applications | Automotive |
| Case | 10-UFDFN |
| Unidirectional channels | 4 |
