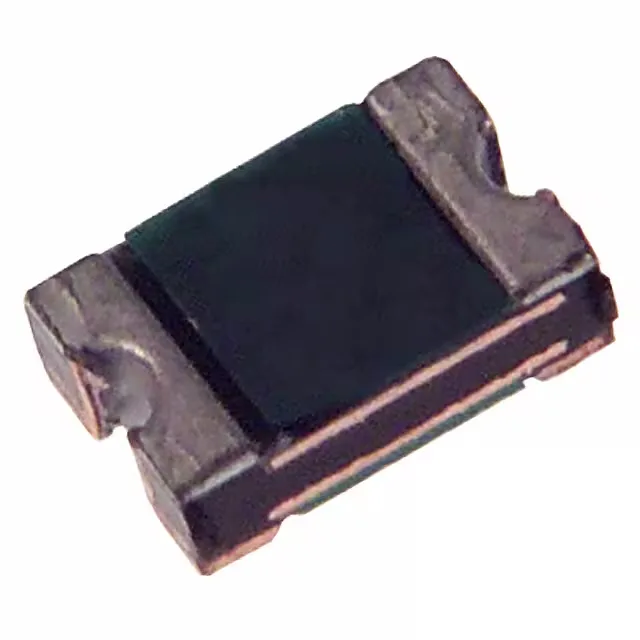

Littelfuse Inc. SMD0805P035TFA
MPNSMD0805P035TFA
Obsolete
$0.8200Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Polymeric |
| Series | POLY-FUSE®, SMD0805 |
| Mounting | Surface Mount |
| Voltage - max | 6V |
| Current - max | 40 A |
| Current - trip | 750 mA |
| Current - hold (Ih) | 350 mA |
| Operating temperature | -40°C~85°C |
| Size (Dimension) | 0.083\" L x 0.053\" W (2.10mm x 1.35mm) |
| Approval agency | cURus, TUV |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Time to trip | 100 ms |
| Case | 0805 (2012 Metric), Concave |
| Thickness | 0.024\" (0.60mm) |
| Resistance - initial (Ri) | 250 mOhms |
| Resistance - post trip (R1) | 1.2 Ohms |
