TAJW336K004RNJ
KYOCERA AVX
600mOhm33 µFTape & Reel (TR)
Ref. price$0.6730
Lead time on requestGet quote
KYOCERA AVX TAJW Series
72 variants · KYOCERA AVX
About the KYOCERA AVX TAJW Series
The KYOCERA AVX TAJW Series series groups 72 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common case of 2312 (6032 Metric), failure rate of - and features of General Purpose. Variants differ by capacitance, ESR and operating temperature, so you can match the exact capacitance your application requires using the selection guide below.
Select a variant by
- Capacitance
- 1 µF · 4.7 µF · 10 µF · 22 µF · 33 µF · 47 µF · 68 µF · 150 µF
- ESR
- - · 1.3Ohm · 1.4Ohm · 1.5Ohm · 1.8Ohm · 2Ohm · 2.2Ohm · 4.4Ohm · 300mOhm · 600mOhm
- Operating temperature
- -55°C ~ 125°C · -55°C~125°C
- Package
- Tape & Reel (TR) · Tape & Reel (TR) Cut Tape (CT)
- Tolerance
- ±10% · ±20%
- Voltage - rated
- 4 V · 6.3 V · 10 V · 16 V · 25 V · 35 V · 50 V
Shared specifications
- Case
- 2312 (6032 Metric)
- Failure rate
- -
- Features
- General Purpose
- Height - seated
- 0.059\" (1.50mm)
- Lead spacing
- -
- Lifetime
- -
- Manufacturer size code
- W
- Mounting
- Surface Mount
- Size (Dimension)
- 0.236\" L x 0.126\" W (6.00mm x 3.20mm)
- Type
- Molded
Variant comparison
| Parameter | TAJW336K004RNJ | TAJW686K010RNJ | TAJW105K050RNJ | TAJW157M010RNJ | TAJW476M010RNJ | TAJW157M006RNJ |
|---|---|---|---|---|---|---|
| Capacitance | 33 µF | 68 µF | 1 µF | 150 µF | 47 µF | 150 µF |
| ESR | 600mOhm | 1.3Ohm | 4.4Ohm | - | 1.4Ohm | 300mOhm |
| Operating temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C~125°C | -55°C~125°C | -55°C ~ 125°C |
| Package | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |

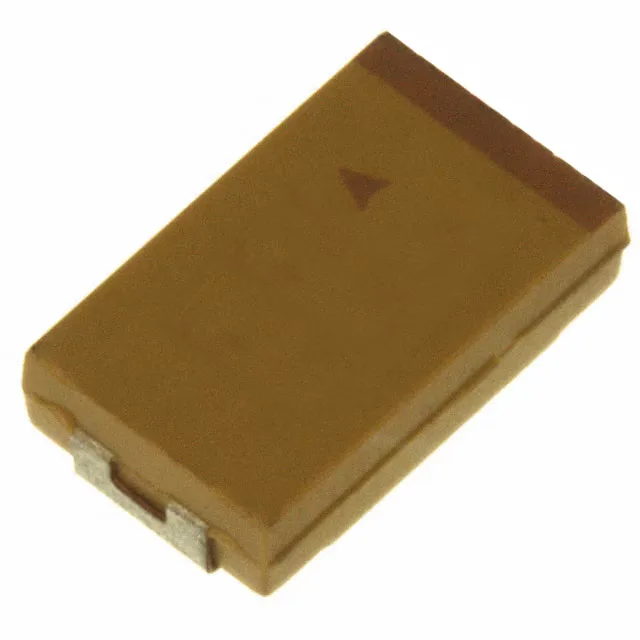

| Tolerance | ±10% | ±10% | ±10% | ±20% | ±20% | ±20% |
| Voltage - rated | 4 V | 10 V | 50 V | 10 V | 10 V | 6.3 V |
Request a quote on any KYOCERA AVX TAJW Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
