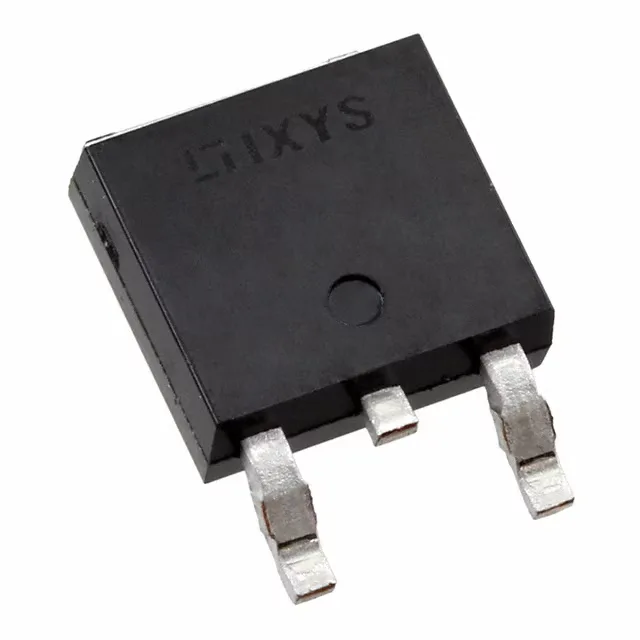

IXYS IXFY30N25X3
MPNIXFY30N25X3
Active
MOSFET N-CH 250V 30A TO252AA
$6.44Ref. price · indicative, final on quote
PackagingTO-252-3, DPak (2 Leads + Tab), SC-63
RoHSROHS3 Compliant
SeriesHiPerFET™, Ultra X3
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | HiPerFET™, Ultra X3 |
| FET type | N-Channel |
| Mounting | Surface Mount |
| Drain to source voltage | 250 V |
| Drive voltage (Max rds on, min rds on) | 10V |
| Current - continuous drain (Id) @ 25°C | 30A (Tc) |
| Power dissipation | 176W (Tc) |
| Operating temperature | -55°C ~ 150°C (TJ) |
| Package | Tube |
| Vgs | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Vgs(th) (Max) @ id | 4.5V @ 500µA |
| Rds on (Max) @ id, vgs | 60mOhm @ 15A, 10V |
| Gate charge (Qg) (Max) @ vgs | 21 nC @ 10 V |
| Input capacitance (Ciss) (Max) @ vds | 1450 pF @ 25 V |
