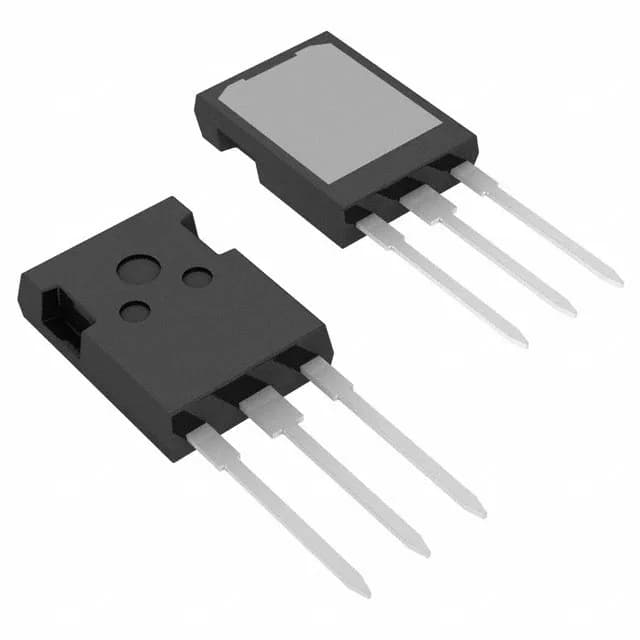

SCR 1.6KV 75A PLUS247-3
$17.16Ref. price · indicative, final on quote
PackagingTO-247-3 Variant
StockContact for availability
MOQ1 pcs
- 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
- Date & lot codes on quoteStated per line before you commit; label photos on request.
- MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| SCR type | Standard Recovery |
| Mounting type | Through Hole |
| Voltage - off state | 1.6 kV |
| Voltage - on state (Vtm) | 1.4 V |
| Voltage - gate trigger (Vgt) | 1.5 V |
| Current - hold (Ih) | 200 mA |
| Current - off state | 10 mA |
| Current - gate trigger (Igt) | 100 mA |
| Current - on state (It (AV)) | 48 A |
| Current - on state (It (RMS)) | 75 A |
| Current - non rep. surge 50, 60Hz | 1500A, 1600A |
| Operating temperature | -40°C ~ 140°C |
| Package | Tube |
| Case | TO-247-3 Variant |
