What the 5CSEBA5U23I7N is and where it fits

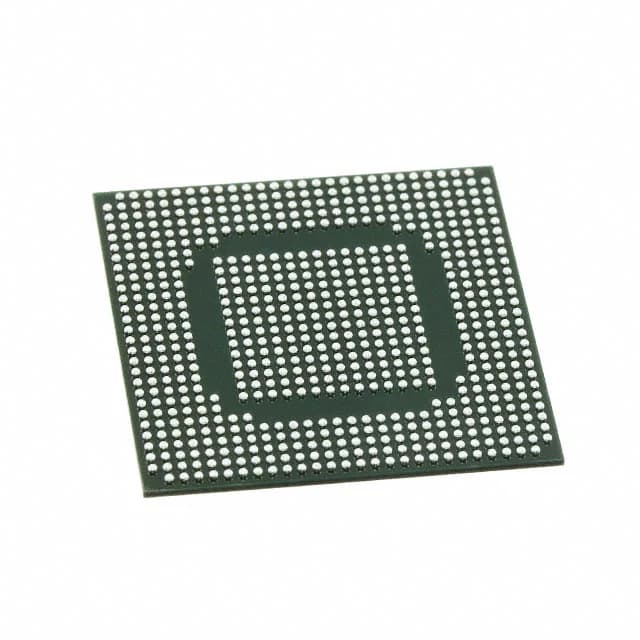

The 5CSEBA5U23I7N is a Cyclone V SE series SoC FPGA with a dual ARM Cortex-A9 MPCore hard processor system and programmable logic fabric. The HPS runs at 800 MHz, and the FPGA provides 85K logic elements. The connectivity set covers CANbus, Ethernet, I²C, SPI, UART/USART, USB OTG, and memory-mapped EBI/EMI interfaces, plus MMC/SD/SDIO for storage. That range suits it for industrial controllers, motor drives with fieldbus gateways, vision systems, and communications infrastructure where the processor runs Linux or a real-time OS and the FPGA handles sensor fusion or custom I/O. The industrial temperature grade of -40°C to 100°C junction means it can live in an outdoor telecom cabinet, an engine bay, or a factory floor panel without active cooling — though the 672-UBGA package does need a proper thermal via pattern under the die.
I/O split: 181 MCU, 145 FPGA
The 181 I/Os on the HPS side cover the memory bus, Ethernet PHY, USB, and the peripheral set. The 145 FPGA-side I/Os are available for parallel ADC interfaces, camera links, or custom backplane buses. The split means you can keep the processor's standard interfaces on dedicated pins and use the FPGA I/Os for the non-standard or high-speed parallel connections without contention. Plan the pin mapping early — the 672-UBGA ballout has specific banks for each voltage domain.
