Infineon Technologies XMC4400F64F512BAXQMA1 — Microcontrollers & Processors (MCU / MPU / DSP)
Infineon Technologies

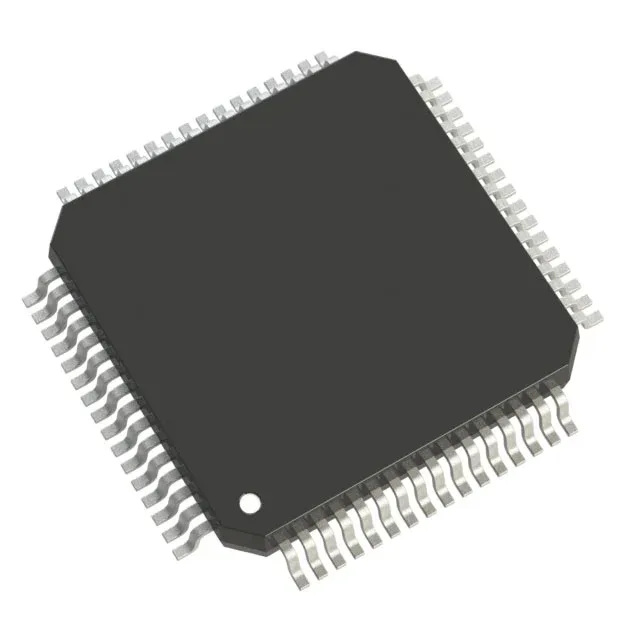

Infineon XMC4400F64F512BAXQMA1 MCU, ARM Cortex-M4, 120 MHz

MPNXMC4400F64F512BAXQMA1
End of Life

Infineon Technologies XMC4000 series ARM Cortex-M4 32-bit MCU, XMC4400F64F512BAXQMA1, 120 MHz, 512 KB flash, 80 KB RAM, 64-TQFP exposed pad, tray.

$11.59Ref. price · indicative, final on quote
XMC4400F64F512BAXQMA1 datasheet
Packaging64-TQFP Exposed Pad
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

XMC4400F64F512BAXQMA1 Technical Specifications
ParameterValue
SeriesXMC4000
Mounting typeSurface Mount
Oscillator typeInternal
Program memory typeFLASH
Voltage - supply (Vcc (Vdd))3.13V ~ 3.63V
Operating temperature-40°C ~ 85°C (TA)
Speed120MHz
PackageTray
RAM size80K x 8
Core size32-Bit Single-Core
PeripheralsDMA, I²S, LED, POR, PWM, WDT
ConnectivityCANbus, Ethernet, I²C, LINbus, SPI, UART, USB
Number of i (O)31
Core processorARM® Cortex®-M4
Case64-TQFP Exposed Pad
Data convertersA/D 14x12b; D/A 2x12b
Program memory size512KB (512K x 8)

Product details

120 MHz Cortex-M4 with industrial connectivity

The XMC4400F64F512BAXQMA1 is an ARM Cortex-M4 MCU clocked at 120 MHz, with 512 KB flash and 80 KB RAM — enough headroom to run a real-time control loop alongside a full Ethernet or CANopen stack without external memory. On-chip peripherals include a 14-channel 12-bit ADC and dual 12-bit DAC, covering analog sensor acquisition and actuator output for motor-drive or power-conversion feedback paths. Connectivity spans Ethernet, CAN, USB, I²C, SPI, UART, and LINbus — making this a single-chip gateway for factory automation nodes that bridge fieldbus to a higher-level network.

ROHS3 compliant per the manufacturer's declaration, covering the current EU exemption scope for lead-free assembly.

Frequently asked questions

What is the closest functional alternative to XMC4400F64F512BAXQMA1 within the XMC4000 family?

The XMC4800F100F1024AAXQMA1 steps up to 144 MHz, 1 MB flash, and 75 I/O in a 100-pin package, requiring a board spin.

Does XMC4400F64F512BAXQMA1 include an internal oscillator?

Yes, the internal oscillator is listed as the clock source — no external crystal or oscillator is required for basic operation, though an external clock can be used for tighter timing accuracy in CAN or Ethernet applications.
