Control-loop MCU for sensor and actuator nodes
The XMC1100T038F0016ABXUMA1: With 16 KB of flash and 16 KB of RAM, it targets cost-sensitive control applications like motor commutation, sensor fusion, and human-machine interfaces where a full-featured Cortex-M4 would be overkill.
Peripheral set and I/O budget for compact boards

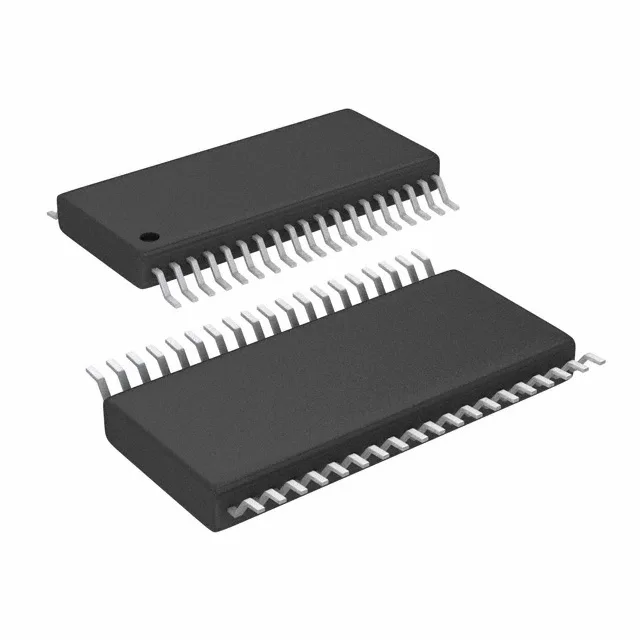

26 GPIOs in a 38-pin TSSOP package (PG-TSSOP-38-9) give a high I/O-to-pin ratio for its footprint. The 0.65 mm pitch keeps the board layout manageable on a two-layer PCB without micro-vias. On-chip peripherals include a 12-channel 12-bit ADC, PWM timers, a watchdog timer, brown-out detect, and power-on reset — enough to handle a brushless DC motor commutation loop or a multi-sensor data acquisition chain without external analog front-end ICs. Connectivity covers I²C, SPI, UART/USART, and LINbus — the LIN interface is useful for automotive body-control modules or industrial actuator buses where CAN is over-specified.
Active lifecycle and compliance status
The part is supplied in tape-and-reel packaging (also available in cut tape), which aligns with automated pick-and-place assembly lines. No pin-compatible successor or cross-reference is recorded — the XMC1000 series is the active generation for this core and memory configuration.
